- ECOSYS MA4500ifx Laser Monodruck 1200 x 1200 DPI A4 Direktdruck Schwarz Weiß 45 ppm A4 1.200 dpi 1.200 dpi 500 Blatt USB 2.0 RJ-45
5 Images
Product description
The ECOSYS MA4500ifx meets the high demands of users on versatility and productivity whilst also delivering exceptionally low running costs. This multifunctional product offers paper handling options with up to 2,600 sheets and modern security features.
Technical specifications
Call-Management
| Speed dialling | Y |
Design
| Product colour | Black,White |
| Country of origin | Vietnam |

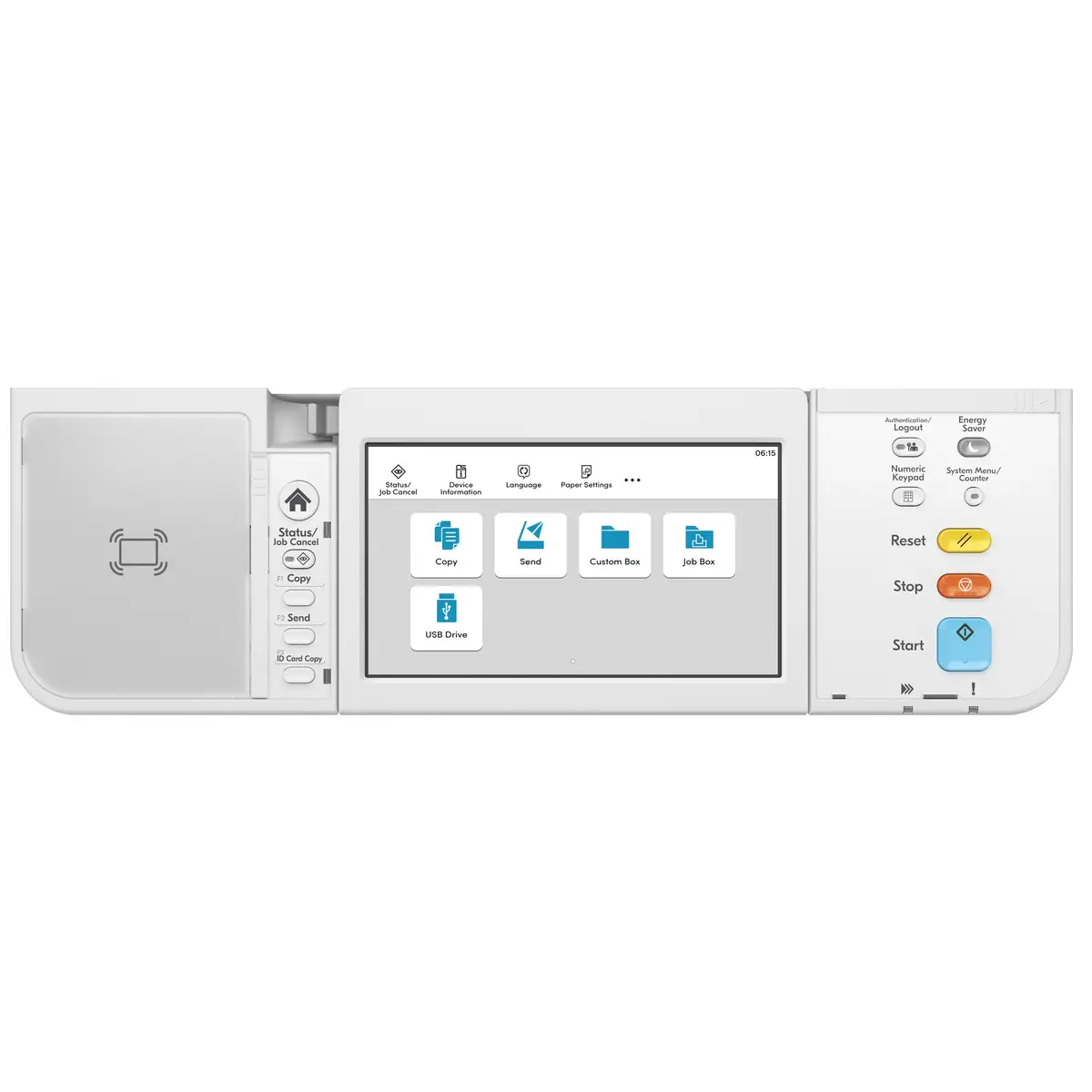

| Built-in display | Y |
| Colour display | Y |
Bildschirm
| Display diagonal | 7 " |
Anschlüsse und Schnittstellen
| USB 2.0 ports | 1 |
| Ethernet LAN | Y |
| Wi-Fi | No |
| Optional connectivity | Ethernet,Wireless LAN |
| Direct printing | Y |
Prozessor
| Processor | A53 |
| Processor cores | 2 |
Speicher
| Memory slots | 1 |
Netzwerk
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 |
Leistungen
| Maximum internal memory | 3,500 MB |
| Sound pressure level (printing) | 54 dB |
| Sound pressure level (duplex printing) | 54 dB |
| Sound pressure level (copying) | 54 dB |
| Sound pressure level (standby) | 30 dB |
Multimedia
| Image formats supported | JPEG,TIFF |
| Document formats supported | PDF,XPS |
Computersystem
| Processor family | ARM Cortex |
Merkmale
| Number of print cartridges | 1 |
| Printing colours | Black |
| Print technology | Laser |
| Printer fonts | Barcode,Bitmap,PCL |
| Replacement cartridges | TK-3300 |
| Duplex functions | Copy,Fax,Print,Scan |
| Digital sender | Y |
| Maximum duty cycle | 150,000 pages |
| Recommended duty cycle | 3000 - 15000 |
Druckgeschwindigkeit
| Page description languages | PCL 5e,PCL 6,PCL XL,PDF 1.4 |
| Economical printing | Y |
| Duplex printing mode | Auto |
| Duplex printing | Y |
| Printing | Mono printing |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Cover page printing function | Y |
| Poster printing function | Y |
| N-in-1 print function | Y |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Warm-up time | 23 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 22.5 ppm |
| Time to first page (black, normal) | 5.3 s |
Nachhaltigkeit
| Sustainability certificates | Blue Angel,EPEAT Gold |
| Sustainability compliance | Y |
Kopieren
| Copying | Mono copying |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| Maximum copy size | A4 |
| ID-card copy function | Y |
| N-in-1 copy function | Y |
| Copy programming function | Y |
| Duplex copying | Y |
| Maximum copy resolution | 600 x 600 |
Systemanforderung
| Linux operating systems supported | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Processor frequency | 1,400 MHz |
Scannen
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanner type | Flatbed & ADF scanner |
| Scanning | Colour scanning |
| Scan to | E-mail,FTP,File,Image,PC,Print,SMB,TWAIN,USB,WIA |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Y |
| Optical scanning resolution | 600 x 600 |
| Maximum scan area | 210 x 297 |
| Duplex scan speed (colour) | 17 ppm |
| Scan speed (colour) | 40 ppm |
| Scan speed (black) | 60 ppm |
| Duplex scan speed (black) | 26 ppm |
| Optical scanning resolution (ADF) | 600 x 600 |
| Optical scanning resolution (black) | 600 x 600 |
| Optical scanning resolution (colour) | 300 x 300 |
Fax
| Faxing | Mono faxing |
| Duplex faxing | Y |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Papierhandhabung
| ISO A-series sizes (A0...A9) | A4,A5,A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Paper size (up to) | A4 |
| Non-ISO print media sizes | Folio (media size),Legal(media size),Letter (medi |
| Paper tray media types | Banner,Labels,Letterhead,Plain paper,Pre-Printed,T |
| Multi-Purpose Tray media weight | 60 - 220 |
| Paper tray media weight | 60 - 120 |
Ein- und Ausgangskapazität
| Total number of input trays | 2 |
| Maximum number of input trays | 6 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 75 sheets |
| Multi-Purpose tray input capacity | 100 sheets |
| Total input capacity | 600 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Total output capacity | 250 sheets |
| Maximum output capacity | 250 sheets |
| Maximum input capacity | 2,600 sheets |
Lieferumfang
| Cables included | AC |
| Cartridge(s) included | Y |
| Imaging unit included | Y |
Technische Details
| Market positioning | Business |
| Mobile printing technologies | Apple AirPrint,KyoceraMobile Print,Mopria PrintS |
| AC input voltage | 220 - 240 |
Verpackungsdaten
| Package weight | 30,000 g |
| Package depth | 570 mm |
| Package width | 607 mm |
| Package height | 695 mm |
| Included cartridge capacity (black) | 6,000 pages |
Leistung
| Power consumption (off) | 0.1 W |
| Power consumption (standby) | 36.3 W |
| AC input frequency | 50/60 |
| Power consumption (sleep) | 0.5 W |
| Power consumption (max) | 1,237 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.62 kWh/we |
| Power consumption (printing) | 626.3 W |
| Power consumption (ready) | 56.3 W |
| Power consumption (copying) | 563.8 W |
Betriebsbedingungen
| Operating relative humidity (H-H) | 15 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
Sonstige Funktionen
| Display | LCD |
| Built-in processor | Y |
| Control type | Touch |
| USB port | Y |
| All-In-One-multitasking | Y |
| Fax delayed sending | Y |
| Auto-redialing | Y |
| Fax forwarding | Y |
| Maximum resolution | 1200 x 1200 |
| Internal memory | 1,536 MB |
| Modem speed | 33.6 Kbit/s |
| Copy speed (black, normal quality, A4) | 45 cpm |
| Maximum number of copies | 999 copies |
| Fax memory | 256 pages |
| Time to first copy (black, normal) | 6 s |
| Copier resize | 25 - 400 |
| Custom media length | 210 - 356 |
| Custom media width | 140 - 216 |
| Maximum scan resolution | 600 x 600 |
Gewicht und Abmessungen
| Weight | 23,000 g |
| Height | 575 mm |
| Width | 475 mm |
| Depth | 476 mm |
Downloads
520021_document_EN_001
PDF Download
ID: 520021
Kyocera ID: 870B6110C103NL3
