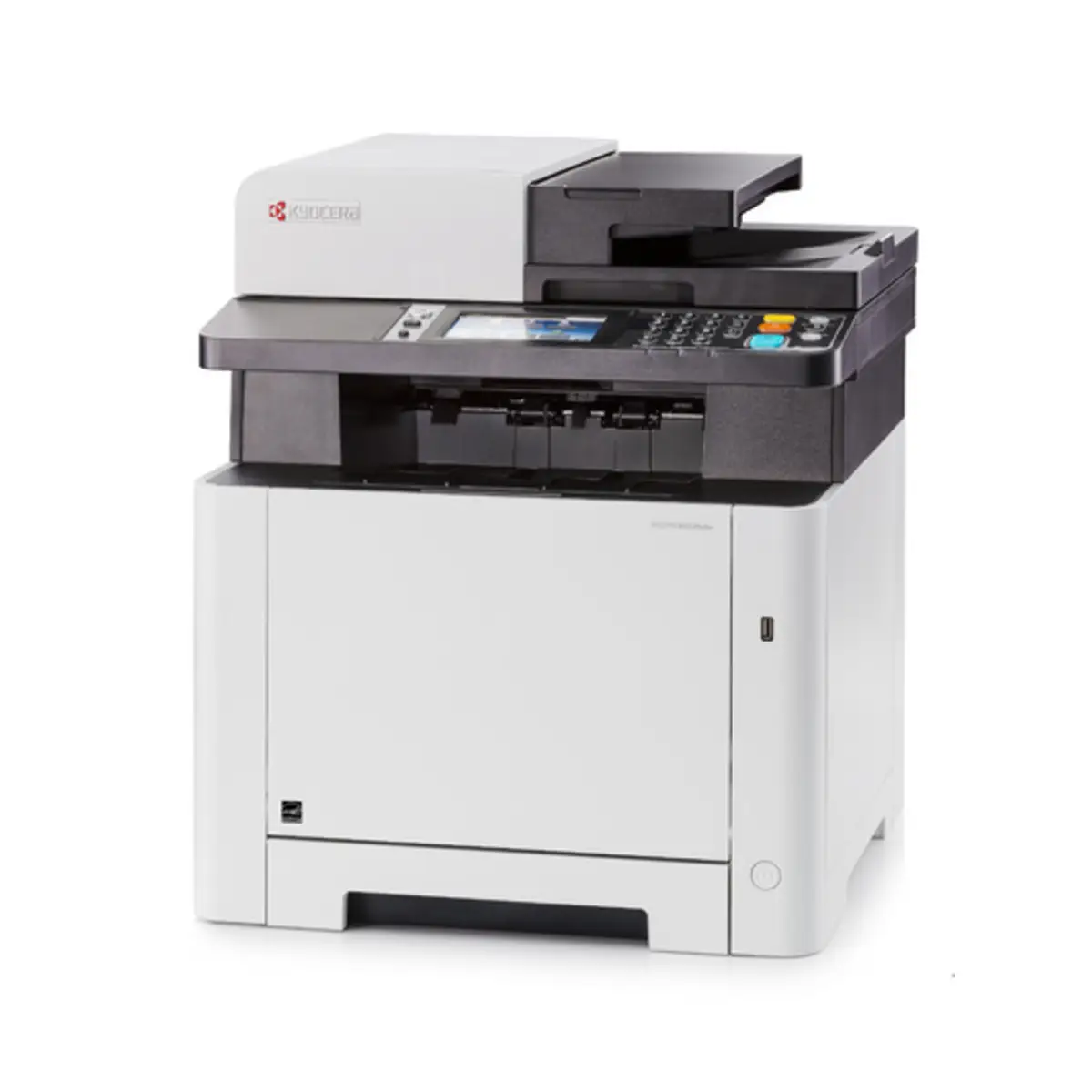

- Ecosys M5526cdn A4 All-In-One Drucker/Scanner/Kopierer/Fax Farblaserdruck
+1 Images
6 Images
Product description
- Particularly low printing costs thanks to ECOSYS technology
- Up to 26 A4 pages per minute in color
- Up to 1,200 dpi print resolution

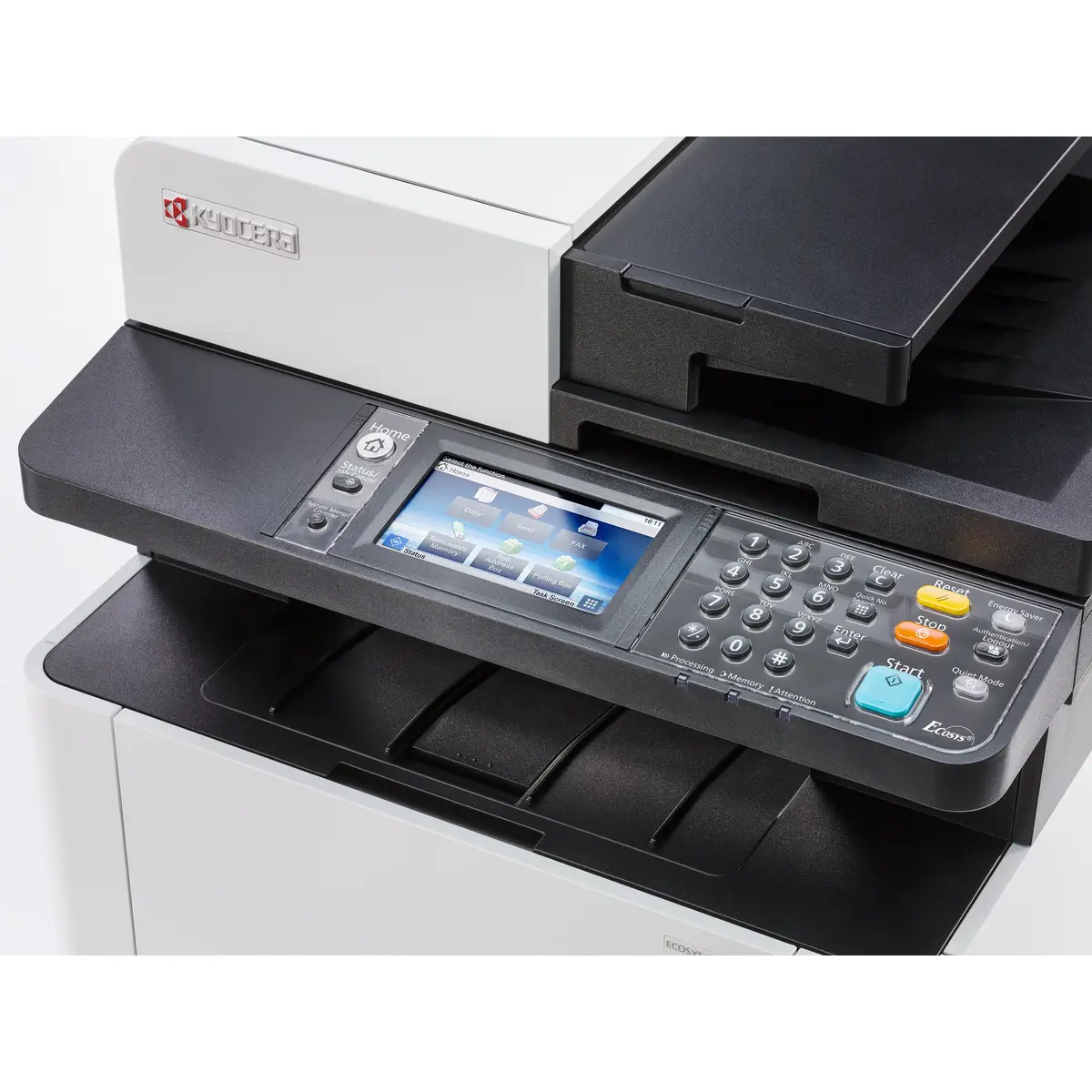

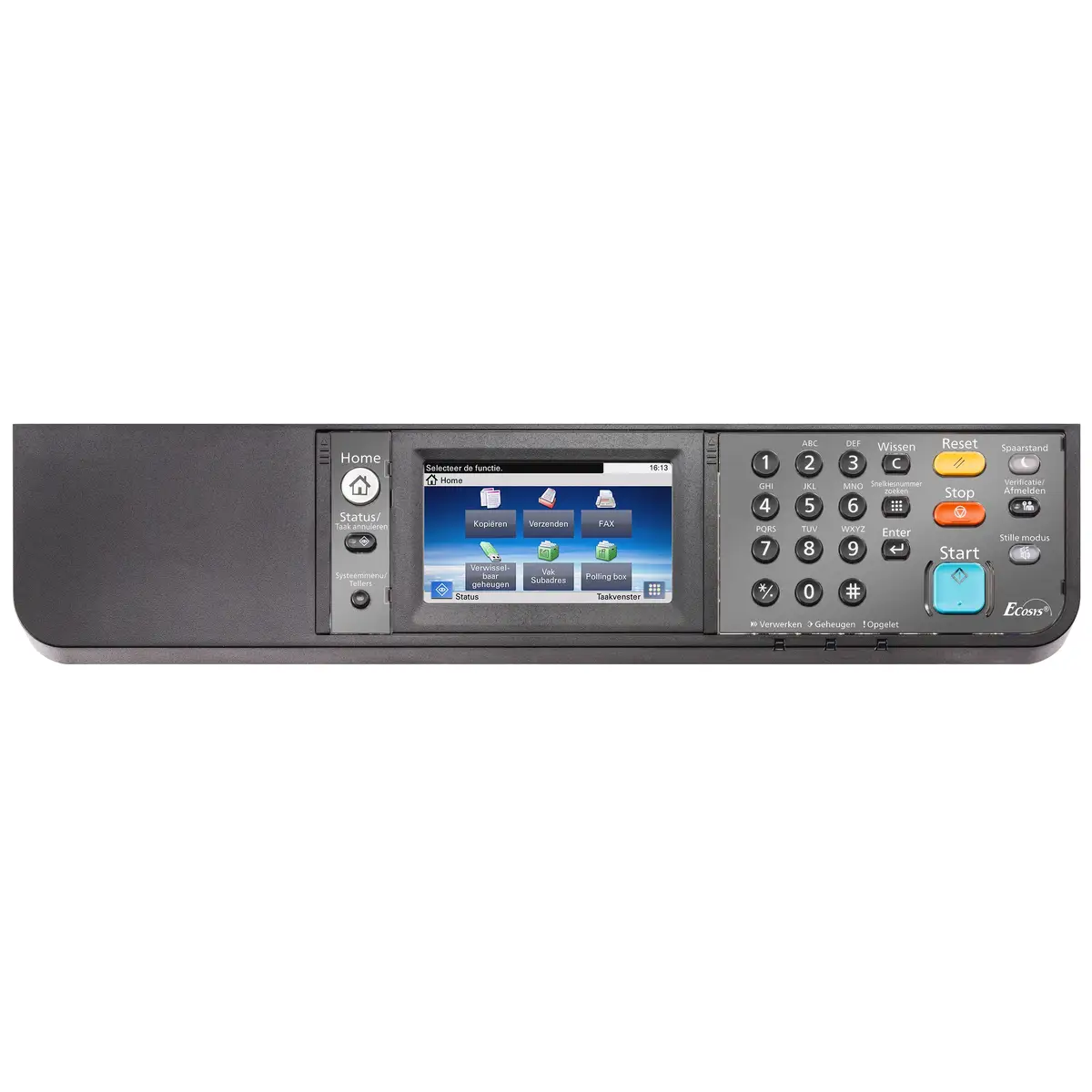

- Comfortable touch panel for easy operation
- 50-sheet dual-scan document feeder
- 250-sheet cassette and 50-sheet multipurpose tray
- Gigabit network interface and USB 2.0
- High security through SSL, IPsec and “Confidential Print”
- Optional: USB card reader for easy authentication
- Mobile print support including AirPrint and Google Cloud Print
- CO2-neutral KYOCERA toner
The top device in the new ECOSYS series combines the best color quality with the lowest costs - and it will make your workflow significantly easier. The dual-scan document feeder, the 4.3-inch touchscreen for intuitive operation and the program buttons to simplify complex workflows increase productivity and make this device an absolute all-rounder. With a toner yield of up to 3,000 pages in color, the systems achieve unrivaled low costs per page.
The new ECOSYS systems are the perfect multifunctional partners for your company and offer you a future with brilliant colors.
Technical specifications
Design
| Built-in display | Y |
| Colour display | Y |
Bildschirm
| Display diagonal | 4.3 " |
| Display resolution | 480 x 272 |
Anschlüsse und Schnittstellen
| USB 2.0 ports | 2 |
| Ethernet LAN | Y |
| Bluetooth | N |
| NFC | N |
| Direct printing | Y |
Speicher
| Memory slots | 1 |
Netzwerk
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | 3DES,AES,DES,HTTPS,IPPS,IPSec,SHA-1,SHA-2,SNMPv3,S |
| Email over SSL | Y |
| Ethernet LAN data rates | 10,100,1000 |
Software
| Drivers included | Y |
Nachrichtenübertragung
| Email protocols | POP3,SMTP |
Maus
| Certification | TÜV/GS, CE, ISO 9001, ISO14001 |
Leistungen
| Compatible memory cards | SD,SDHC |
| Maximum internal memory | 1,536 MB |
| Sound pressure level (printing) | 49 dB |
| Sound pressure level (quiet mode) | 44 dB |
| Sound pressure level (copying) | 49 dB |
| Sound pressure level (standby) | 30 dB |
Multimedia
| Image formats supported | JPEG,MMR,TIFF |
| Document formats supported | PDF,XPS |
Merkmale
| Number of print cartridges | 4 |
| Printing colours | Black,Cyan,Magenta,Yellow |
| Replacement cartridges | TK-5240K, TK-5240C, TK-5240M, TK-5240Y |
| Number of printer fonts | 93 |
| Duplex functions | Copy,Fax,Print,Scan |
| Digital sender | Y |
| Maximum duty cycle | 50,000 pages |
| Recommended duty cycle | 500 - 2000 |
Druckgeschwindigkeit
| Page description languages | Microsoft XPS,PCL 5c,PCL6,PCL XL,PostScript 3 |
| Economical printing | Y |
| Duplex printing mode | Auto |
| Duplex printing | Y |
| Printing | Farbdruck |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Barcode printing | Y |
| Eco printing function | Y |
| Skip blank page function | Y |
| Secure PDF printing function | Y |
| Poster printing function | Y |
| Auto tray switching function | Y |
| N-in-1 print function | Y |
| Tray priority settings function | Y |
| Print speed (colour, draft quality, A4/US Letter) | 26 ppm |
| Print speed (black, normal quality, A4/US Letter) | 26 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 26 ppm |
| Print speed (black, draft quality, A4/US Letter) | 26 ppm |
| Warm-up time | 29 s |
| Time to first page (colour, normal) | 10.5 s |
| Duplex print speed (colour, normal quality, A4/US Letter) | 13 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 13 ppm |
| Time to first page (black, normal) | 9.5 s |
| Print margins (top, bottom, right, left) | 4.2 mm |
| Print resolution black | 1200 x 1200 |
| Print resolution colour | 1200 x 1200 |
Nachhaltigkeit
| Sustainability certificates | Nordic Swan Ecolabel,BlueAngel,REACH,RoHS,EPEAT S |
Kopieren
| Copying | Colour copying |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| ID-card copy function | Y |
| N-in-1 copy function | Y |
| Copy programming function | Y |
| Duplex copying | Y |
| Maximum copy resolution | 600 x 600 |
Systemanforderung
| Linux operating systems supported | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan, |
| Processor frequency | 800 MHz |
Scannen
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanning | Colour scanning |
| Scan to | E-mail,FTP,SMB,TWAIN,USB,WIA |
| Scan drivers | TWAIN,WIA |
| Duplex scanning mode | Auto |
| Duplex scanning | Y |
| Optical scanning resolution | 600 x 600 |
| Duplex scan speed (colour) | 16 ppm |
| Scan speed (colour) | 23 ppm |
| Scan speed (black) | 30 ppm |
| Duplex scan speed (black) | 24 ppm |
Fax
| Faxing | Mono faxing |
| Fax coding methods | JBIG,MH,MMR (Fax codingmethod),MR |
| Duplex faxing | Y |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Papierhandhabung
| ISO A-series sizes (A0...A9) | A4,A5,A6 |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Paper size (up to) | A4 |
| Non-ISO print media sizes | Legal (media size),Letter(media size) |
| Paper tray media types | Letterhead,Plain paper,Pre-Printed |
| Multi-purpose tray media types | Bond paper,Envelopes,Labels,Legal,Letter,Letterhea |
| Duplex media weight | 60 - 120 |
| Multi-Purpose Tray media weight | 60 - 220 |
| Auto Document Feeder (ADF) media weight | 50 - 160 |
| Paper tray media weight | 60 - 163 |
| Media thickness (min) | 0.11 mm |
Ein- und Ausgangskapazität
| Paper input type | Cassette,Paper tray |
| Total number of input trays | 1 |
| Maximum number of input trays | 2 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Multi-Purpose tray input capacity | 50 sheets |
| Total input capacity | 250 sheets |
| Paper tray 1 input capacity | 250 sheets |
| Total output capacity | 150 sheets |
| Maximum output capacity | 150 sheets |
| Auto document feeder (ADF) output capacity | 50 sheets |
| Maximum input capacity | 550 sheets |
Lieferumfang
| Cables included | AC |
| Power cord included | Y |
| Cartridge(s) included | Y |
| Imaging unit included | Y |
Technische Details
| Market positioning | Home & Office |
| Card reader integrated | Y |
| Mobile printing technologies | Apple AirPrint,GoogleCloud Print,Mopria PrintSer |
| Finishing option | N |
| AC input voltage | 220 - 240 |
Verpackungsdaten
| Software CD | Y |
| Quick installation guide | Y |
| Package weight | 33,000 g |
| Package depth | 567 mm |
| Package width | 592 mm |
| Package height | 637 mm |
| Included cartridge capacity (black) | 1,200 pages |
| Included cartridge capacity (CMY) | 1,200 pages |
Zertifikate
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
Leistung
| Power consumption (off) | 0.2 W |
| AC input frequency | 50 - 60 |
| Power consumption (sleep) | 1 W |
| Power consumption (max) | 1,090 W |
| Energy Star Typical Electricity Consumption (TEC) | 1.024 kWh/we |
| Power consumption (printing) | 375 W |
| Power consumption (ready) | 41 W |
| Power consumption (copying) | 375 W |
| Power consumption (average operating) | 375 W |
Betriebsbedingungen
| Operating relative humidity (H-H) | 10 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
| Non-operating altitude | 0.6 - 15000 |
Sonstige Funktionen
| Display | TFT |
| Built-in processor | Y |
| Manual | Y |
| Control type | Touch |
| USB port | Y |
| All-In-One-multitasking | Y |
| Documentation CD | Y |
| Energy saving mode | Y |
| Maximum resolution | 600 x 600 |
| Internal memory | 512 MB |
| Modem speed | 33.6 Kbit/s |
| Copy speed (black, normal quality, A4) | 26 cpm |
| Copy speed (colour, normal quality, A4) | 26 cpm |
| Maximum number of copies | 999 copies |
| Fax memory | 100 pages |
| Time to first copy (black, normal) | 8 s |
| Time to first copy (colour, normal) | 10 s |
| Copier resize | 25 - 400 |
| Custom media length | 148 - 356 |
| Custom media width | 70 - 216 |
| Scan speed (ADF, A4) | 30 ppm |
| Scan media weight | 50 - 160 |
Gewicht und Abmessungen
| Weight | 26,000 g |
| Height | 495 mm |
| Width | 417 mm |
| Depth | 429 mm |
Logistische Daten
| Harmonized System (HS) code | 84433100 |
