Product description

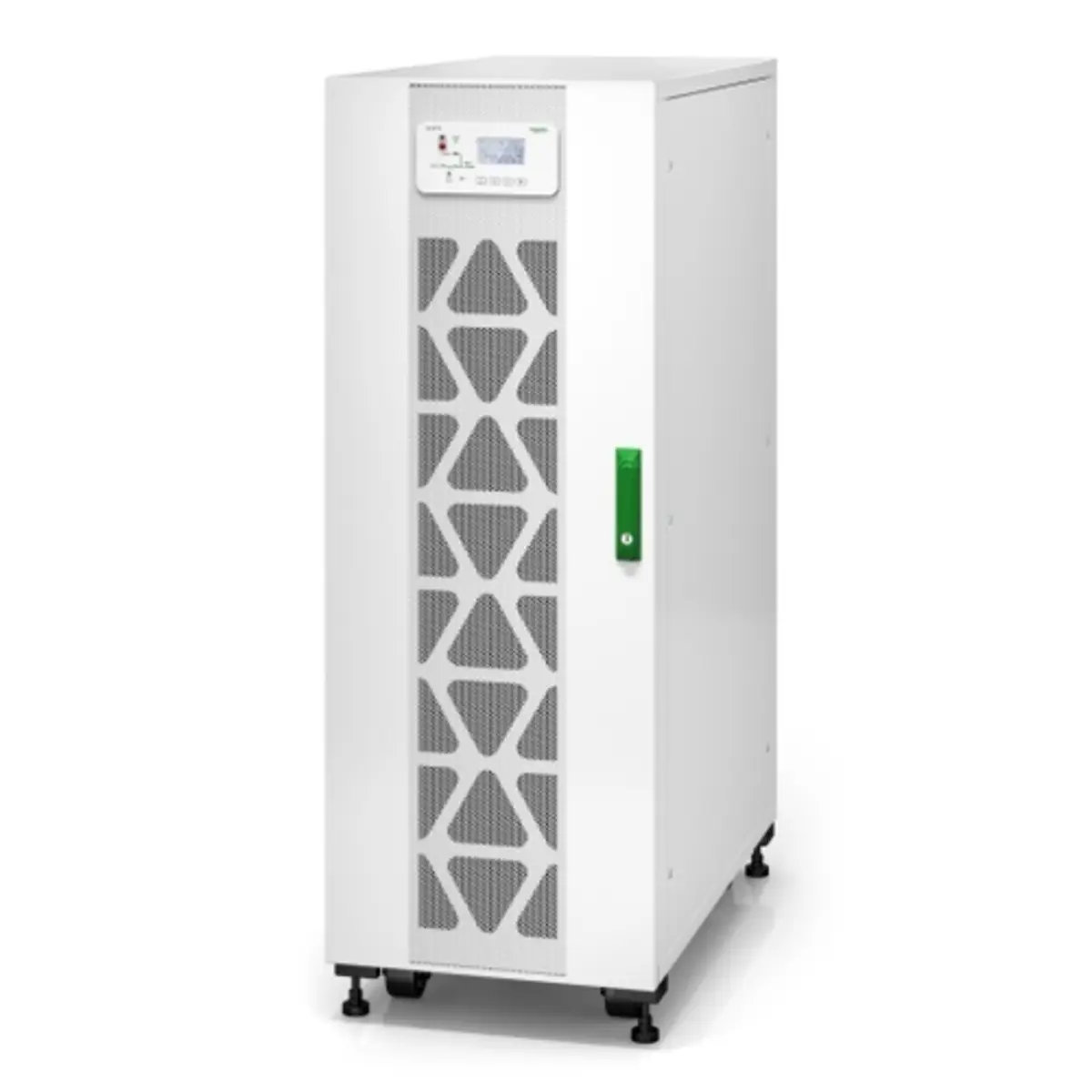

Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Technical specifications
Leistungen
| ECO mode | Y |
Weight & dimensions
| Weight | 152,000 g |
| Battery weight | 190,000 g |
| Battery width | 683 mm |
| Battery height | 1,640 mm |
| Battery depth | 1,114 mm |
Power
| Maximum current | 55 A |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| Input frequency | 45/65 |
| Output power | 30,000 W |
| Noise level | 63 dB |
Sustainability
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 40 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 999.9 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
Ergonomics
| LED indicators | Y |
Features
| Height | 1,400 mm |
| Width | 500 mm |
| Depth | 969 mm |
| Cooling type | Active |
| Number of output phases | 3 |
| UPS topology | Double-conversion (Online) |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) | Y |
| Efficiency | 95 % |
| Input current Total Harmonic Distortion (THD) | 3 % |
| Output power capacity | 30 kVA |
| Output voltage Total Harmonic Distortion (THD) | 3 % |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 304 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 |
| Three-phase output voltage supported | 400 |
Mouse
| Form factor | Tower |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
Design
| Product colour | White |
ID: 521374
APC ID: E3SUPS30KHB
Easy 3S, Doppelwandler (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Detailed product title
Detailed product title
APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 30 kVA, Output power: 30000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V. Form factor: Tower, Product colour: White, Cooling type: Active. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH. Width: 500 mm, Depth: 969 mm, Height: 1400 mm
