1 Images
Technical specifications
Leistungen
| ECO mode | N |
Weight & dimensions
| Weight | 8,600 g |
Lieferumfang
| Rack mount kit | Y |
Verpackungsdaten
| Bundled software | Intelligent Power Software suite |
| Management card included | N |
Certificates
| Safety | IEC/EN 62040-1, UL 1778 |
Sonstige Funktionen
| Mac compatibility | N |
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 520 W |
| Noise level | 40 dB |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
| Input connection type | IEC C14 |
Operational conditions
| Operating temperature (T-T) | 0 - 35 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Y |
| Waveform | Pure sine |
| Automatic battery test | Y |
| Typical backup time at half load | 9 min |
| Typical backup time at full load | 2 min |
Features
| Height | 43.2 mm |
| Width | 438 mm |
| Depth | 361 mm |
| Number of output phases | 1 |
| UPS topology | Line-Interactive |
| Number of input phases | 1 |
| Efficiency | 98 % |
| Output power capacity | 0.65 kVA |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 160 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Mouse
| Form factor | Rackmount |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC out |
Design
| Product colour | Black |
| Rack capacity | 1U |
ID: 525218
Eaton ID: 5P650IRG2
5P 650i G2
Detailed product title
Detailed product title

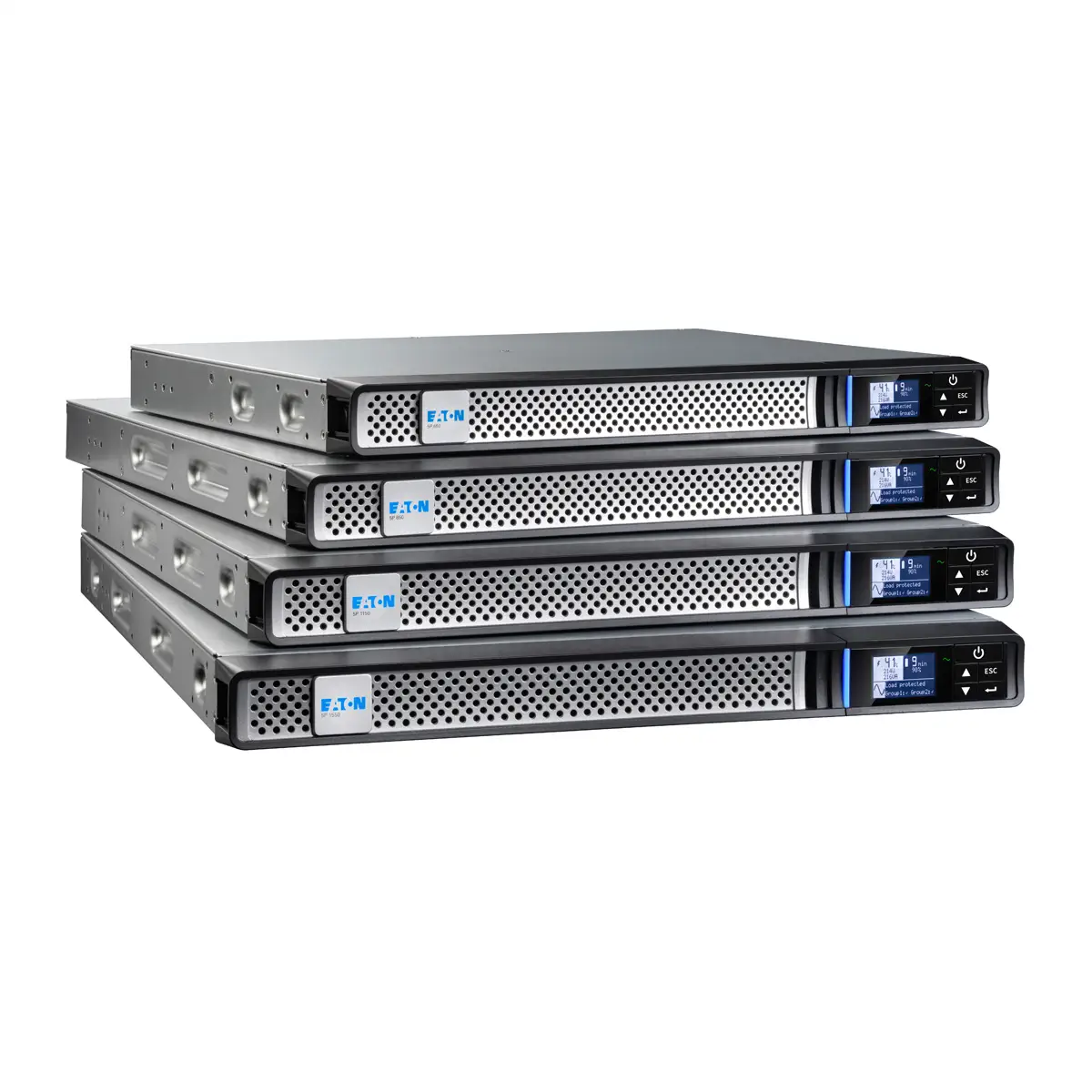

Eaton UPS 5P 650VA Gen2 Rack 1U Line-interactive USV
