Name: GVSUPS100KHS, Doppelwandler (Online), 100 kVA, 100000 W, Sine, 340 V, 460 V
Brand: 60000582
SKU: 521399

text.skipToContent text.skipToNavigation

GVSUPS100KHS, Doppelwandler (Online), 100 kVA, 100000 W, Sine, 340 V, 460 V

ID: 521399 APC ID: GVSUPS100KHS

GVSUPS100KHS, Doppelwandler (Online), 100 kVA, 100000 W, Sine, 340 V, 460 V

Detailed product title

APC GVSUPS100KHS. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 100 kVA, Ausgangsleistung: 100000 W. Formfaktor: Tower, Produktfarbe: Weiß, Display-Typ: LCD. Breite: 521 mm, Tiefe: 847 mm, Höhe: 1485 mm. Nominale Ausgang Spannung: 400 V, Nominale Eing ng Spannung: 400 V

Product colour White

please ask for availability

Added to cart

please ask for availability

Product description

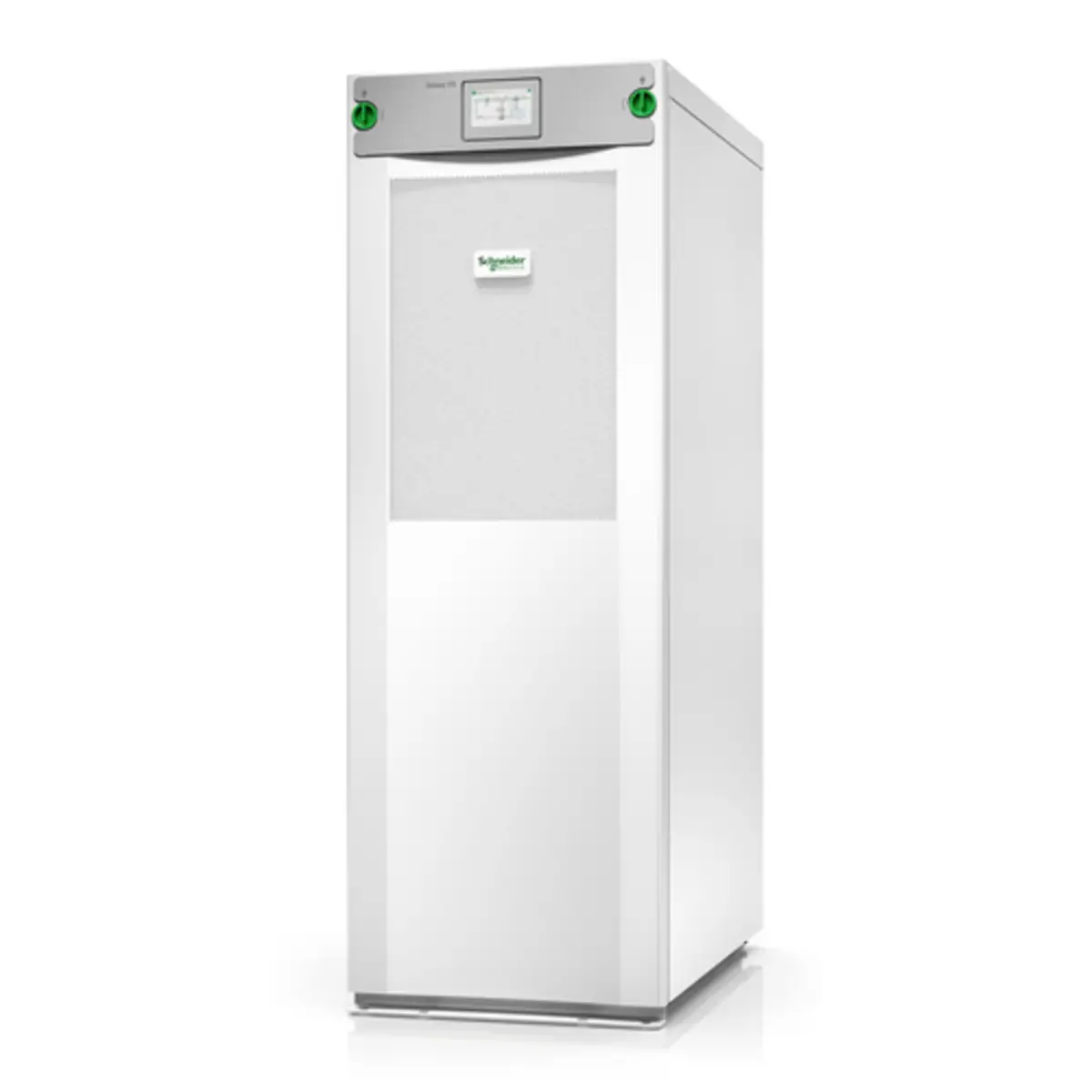

This Galaxy VS UPS GVSUPS100KHS Highly efficient, easy-to-deploy 100kW, 400V 3-phase uninterruptible power supply (UPS). Brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Galaxy VS reduces your energy losses by up to 66% with eConversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in double conversion mode. The UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service.

Technical specifications

Power

Maximum current

182

Other features

International Protection (IP) code

IP21

Sustainability

Sustainability certificates

RoHS

Weight & dimensions

Height

1,485

Packaging data

Package depth	990
Package width	640
Package height	1,680

Sonstige Funktionen

Nominal input voltage	400
Nominal output voltage	400

Battery

Waveform

Sine

Packaging data

Package weight

275,000

Features

Audible alarm(s)	Yes
Crest factor	2.5:1
Number of output phases	3
UPS topology	Double-conversion (Online)
Number of input phases	3
Input power factor	0.99
Efficiency	96.8
Output power capacity	100
Output voltage Total Harmonic Distortion (THD)	3
Input operation voltage (max)	460
Input operation voltage (min)	340
Output operation voltage (min)	380
Output operation voltage (max)	415

Weight & dimensions

Weight	250,000
Width	521
Depth	847

Certificates

Certification	CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
Compliance certificates	RoHS

Operational conditions

Operating relative humidity (H-H)	0 - 95
Storage temperature (T-T)	-25 - 55
Operating temperature (T-T)	0 - 40
Operating altitude	0 - 984.3
Storage relative humidity (H-H)	10 - 80
Non-operating altitude	0 - 15000
