- Desktop Displays
- B-line 241B7QUPBEB 60,5cm (23,8") 1920x1080 Pixel 5ms
4 Images
Product description
Simple USB-C connection and crystal-clear IPS images. The Philips B-line monitor with USB-C connector allows simple notebook docking via one cable for fast data and video to full HD IPS display, and even notebook charging.
Technical specifications
Design
| Product colour | Black |
| Anti-glare screen | Y |
| Regulatory Approvals | CE MarkSEMKOTUV EACClass Bus |
| Front bezel colour | Black |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
Bildschirm
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Backlight type | W-LED |
| Panel type | IPS |
| Screen shape | Flat screen |
| Display number of colours | 16.7 million colours |
| RGB colour space | sRGB |
| Surface hardness | 3H |
| Contrast ratio (dynamic) | 20000000:1 |
| Aspect ratio | 16:9 |
| Dynamic contrast ratio marketing name | SmartContrast |
| DDC/CI | Y |
| Pixel pitch | 0.275 x 0.275 |
| Horizontal scan range | 30 - 83 |
| Viewable size, horizontal | 527 mm |
| Vertical scan range | 56 - 76 |
| Viewable size, vertical | 296.5 mm |
| Display diagonal | 23.8 " |
| Viewing angle, horizontal | 178 deg |
| Viewing angle, vertical | 178 deg |
| Pixel density | 93 ppi |
| Maximum refresh rate | 75 Hz |
| Colour gamut | 85 % |
| NTSC coverage (typical) | 85 % |
| sRGB coverage (typical) | 102 % |
| Display brightness (typical) | 250 cd/m² |
Logistics data
| Harmonized System (HS) code | 85285210 |
Leistungen
| TV tuner integrated | N |
| Component video sync | Separate sync,Sync-on-green (SOG) |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
| Mean time between failures (MTBF) | 70,000 std |
Power
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.7 W |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (PowerSave) | 11.8 W |
| Energy consumption (SDR) per 1000 hours | 18 kW.h |
Lieferumfang
| Cables included | VGA,HDMI,DisplayPort,USBType-C to USB Type-C,USB |
| Stand included | Y |
Technische Details
| Picture enhancement | SmartImage |
| Market positioning | Home |
| Recommended resolution | 1920 x 1080 @ 60 Hz |
| Response time | 5 ms |
Verpackungsdaten
| Bundled software | SmartControl |
| Package weight | 8,940 g |
| Package depth | 224 mm |
| Package width | 603 mm |
| Package height | 492 mm |
Recycling-Daten
| Total amount of recyclable materials | 85 % |
Power supply
| Power consumption (typical) | 13.14 W |
Sonstige Funktionen
| Power supply type | External |
| Manual | Y |
| Exterior finish type | Textured |
| Energy efficiency class (old) | E |
| Separate H/V sync | Y |
| Sync-on-green (SOG) | Y |
| Display sRGB | Y |
| EasyRead mode | Y |
| LowBlue mode | Y |
| Digital horizontal frequency | 30 - 83 |
| Digital vertical frequency | 56 - 76 |
| Display diagonal (metric) | 60.5 cm |
| Recyclable packaging material | 100 % |
Sustainability
| Sustainability certificates | ENERGY STAR,TCO,RoHS |
| Doesn't contain | PVC/BFR,Mercury (element) |
| Post-consumer recycled plastic | 85 % |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80 |
| Storage temperature (T-T) | -20 - 60 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3658 |
| Non-operating altitude | 0 - 12192 |
Gewicht und Abmessungen
| Height (with stand) | 527 mm |
| Depth (with stand) | 257 mm |
| Width (with stand) | 541 mm |
| Weight (with stand) | 5,720 g |
| Weight (without stand) | 3,290 g |
| Width (without stand) | 541 mm |
| Height (without stand) | 332 mm |
| Depth (without stand) | 57 mm |
Ergonomics
| Cable lock slot type | Kensington |
| Cable lock slot | Y |
| Plug and Play | Y |
| VESA mounting | Y |
| LED indicators | Operation,Stand-by |
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,G |
| Height adjustment | Y |
| Number of OSD languages | 21 |
| Pivot | Y |
| On Screen Display (OSD) | Y |
| Swivelling | Y |
| On/off switch | Y |
| Swivel angle range | -175 - 175 |
| Tilt angle range | -5 - 30 |
| Panel mounting interface | 100 x 100 |
| Height adjustment | 150 mm |
| Pivot angle | 90 - 90 |
Multimedia
| Number of speakers | 2 |
| Built-in camera | N |
| Built-in speaker(s) | Yes |
| Supported video modes | 1080p |
| RMS rated power | 2 W |
Graphics
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
Mouse
| Certification | CE Mark, FCC Class B,SEMKO, cETLus, CU-EAC,TUV E |
Video
| 3D | N |
Network
| Ethernet LAN data rates | 10,100,1000 |
Projector
| Native aspect ratio | 16:9 |

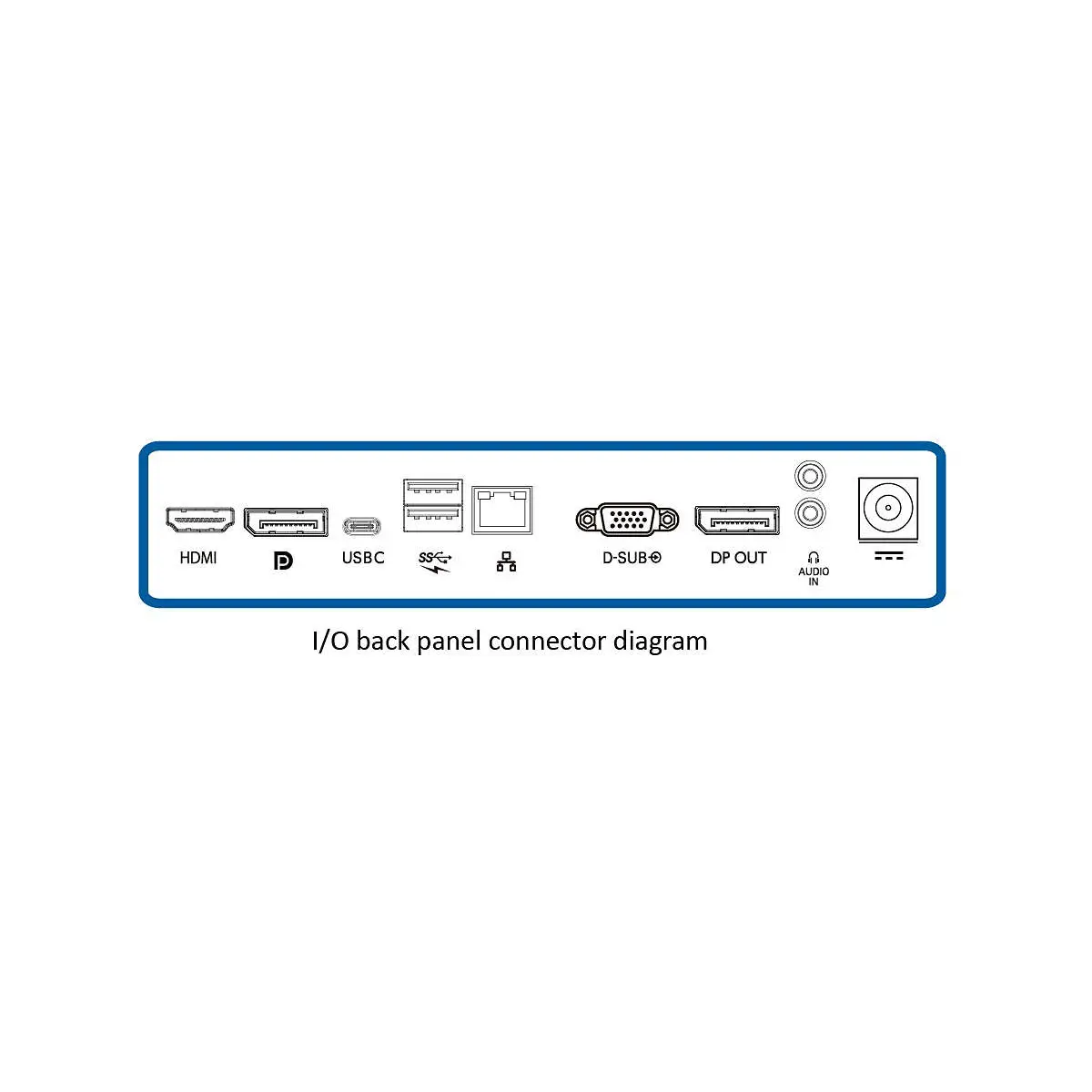

Ports & interfaces
| DisplayPort version | 1.2 |
| USB Power Delivery revision | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI port | N |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Power Delivery (USB PD) | Y |
| Ethernet LAN | Y |
| HDMI | Y |
| Audio input | N |
| Headphone out | Y |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C downstream ports quantity | 2 |
| PC Audio in | Y |
| Built-in USB hub | Y |
| USB Power Delivery up to | 65 W |
