- Smart-UPS X 2200 Rack/Tower LCD USV 230V 1980Watt 2200VA RS-232/USB 10 Ausgangsstecker 4 HE
+1 Images
6 Images
Product description

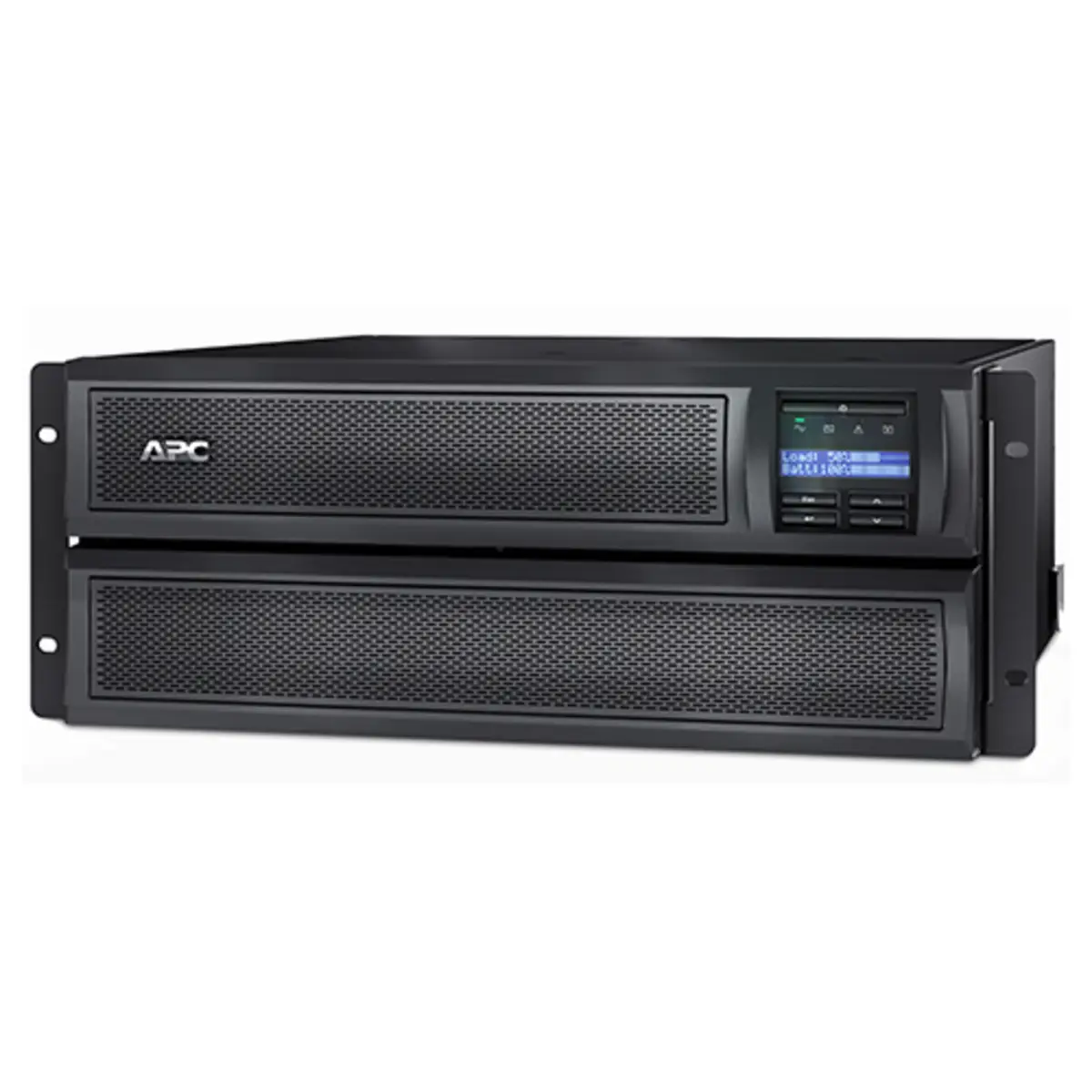

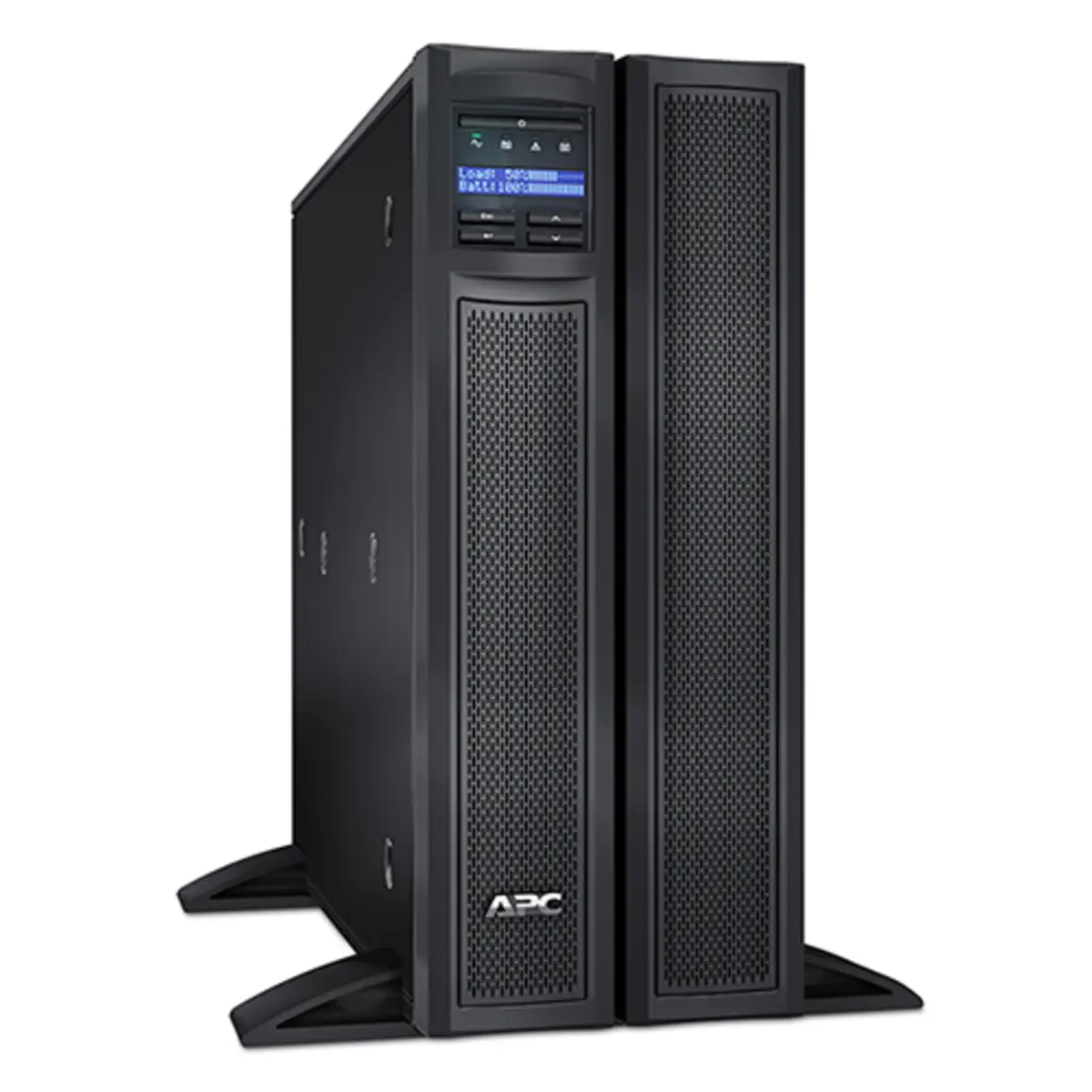

APC Smart-UPS X 2200 Rack/Tower LCD USV
- Automatische Spannungsregelung (AVR) mit Boost- und Trim-Funktion
- Intelligentes Batteriemanagement
- Spannungsaufbereitung
- Laden der Batterie mit Temperaturkompens tion
- Automatischer Neustart angeschlossener Lasten nach USV-Abschaltung
- Automatischer Selbsttest
- < i>Benachrichtigung bei abgetrennter Batterie
Technical specifications
Logistics data
| Products per pallet | 6 ST |
Weight & dimensions
| Weight | 38,560 g |
Power
| Battery recharge time | 3 std |
| Surge protection | Y |
Lieferumfang
| Cables included | RS-232,USB cable |
| Rack mount kit | Y |
Verpackungsdaten
| Software CD | Y |
| Quick installation guide | Y |
| Package weight | 47,730 g |
| Package depth | 633 mm |
| Package width | 586 mm |
| Package height | 330 mm |
Sonstige Funktionen
| Manual | Y |
| USB port | Y |
| Input frequency | 50/60 |
| Output power | 1,980 W |
| Noise level | 55 dB |
Sustainability
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Y |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Typical backup time at half load | 25.3 min |
| Battery capacity | 702 Vah |
| Typical backup time at full load | 9.8 min |
| Battery life (max) | 5 |
Ergonomics
| LED indicators | Status,Battery replacement |
Features
| Height | 432 mm |
| Width | 178 mm |
| Depth | 483 mm |
| Cable length | 2 m |
| Audible alarm(s) | Y |
| Output frequency regulation | 50/60 |
| UPS topology | Line-Interactive |
| Automatic Voltage Regulation (AVR) | Y |
| Auto-restart | Y |
| Emergency Power Off (EPO) | Y |
| Efficiency | 98.1 % |
| Surge energy rating | 645 J |
| Output power capacity | 2.2 kVA |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 140 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
Mouse
| Form factor | Rackmount/Tower |
| Certification | CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH |

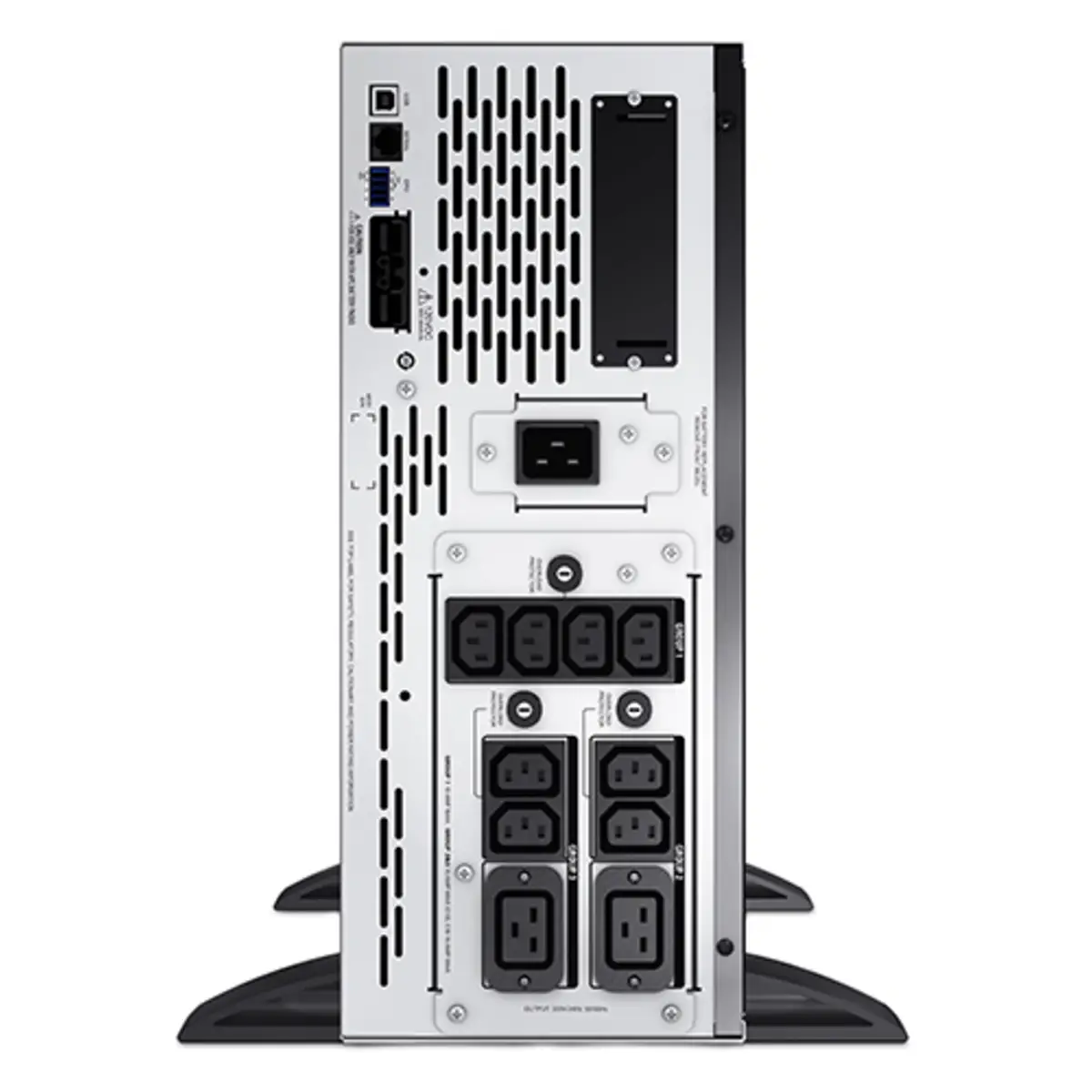

Ports & interfaces
| Power plug | C20 coupler |
| AC outlet types | C13 coupler,C19 coupler |
| Number of output IEC jumpers | 2 |
| SmartSlot | Y |
| AC outlets quantity | 10 AC out |
Design
| Product colour | Black,Stainless steel |
| Temperature sensor | Y |
| Rack capacity | 4U |
