- StarTech PCI-Express Network Card Gigabit Network Adapter 1 Port
5 Images
Product description

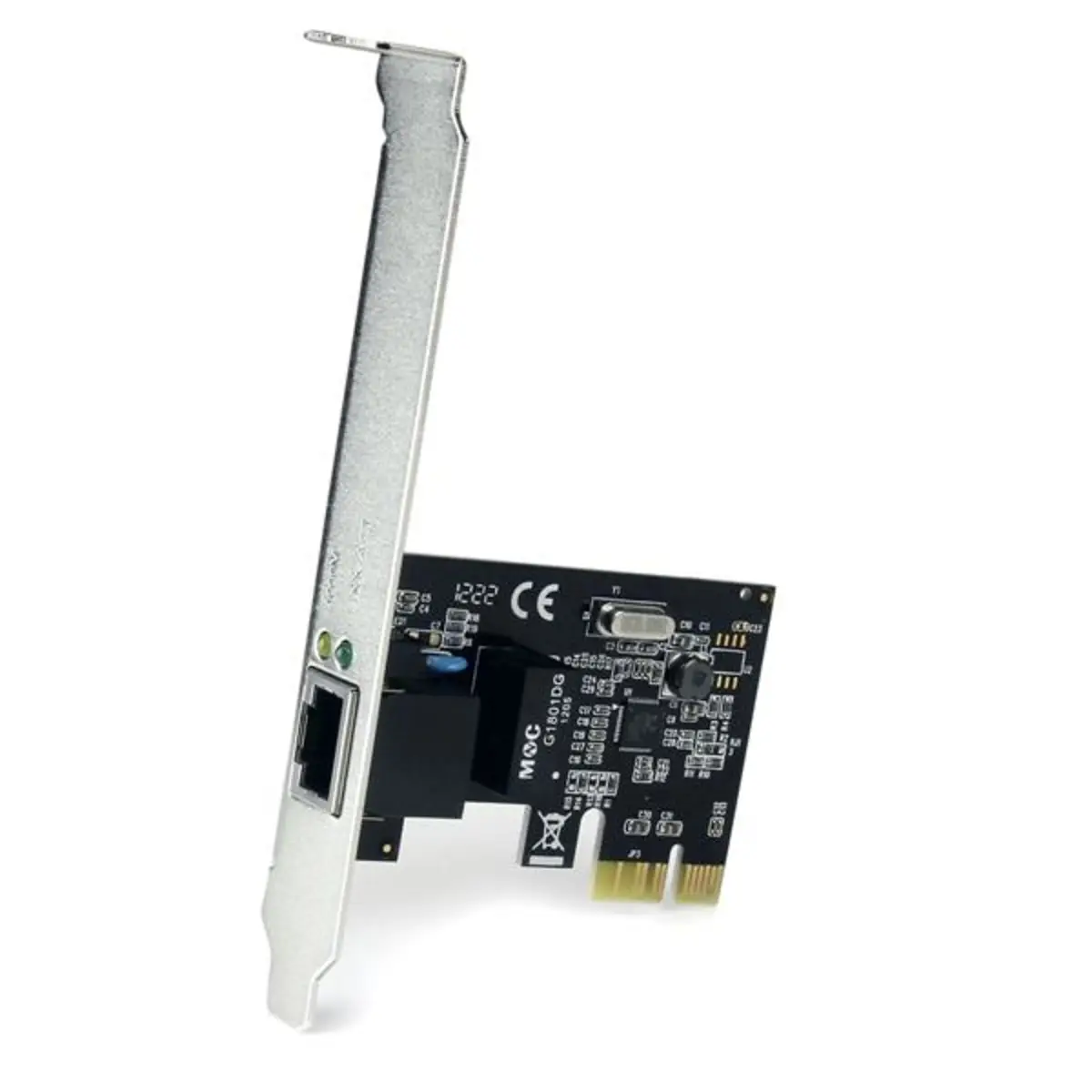

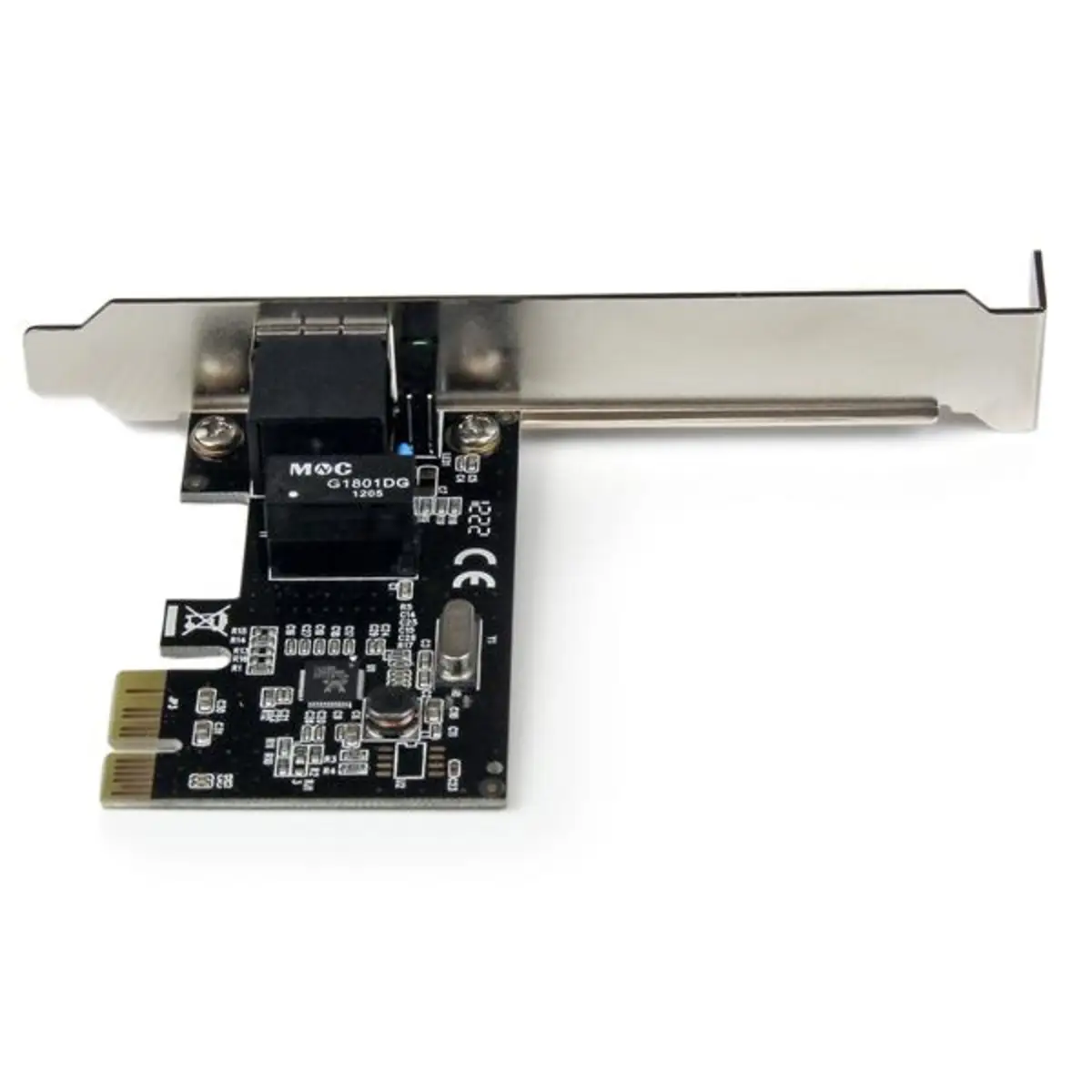

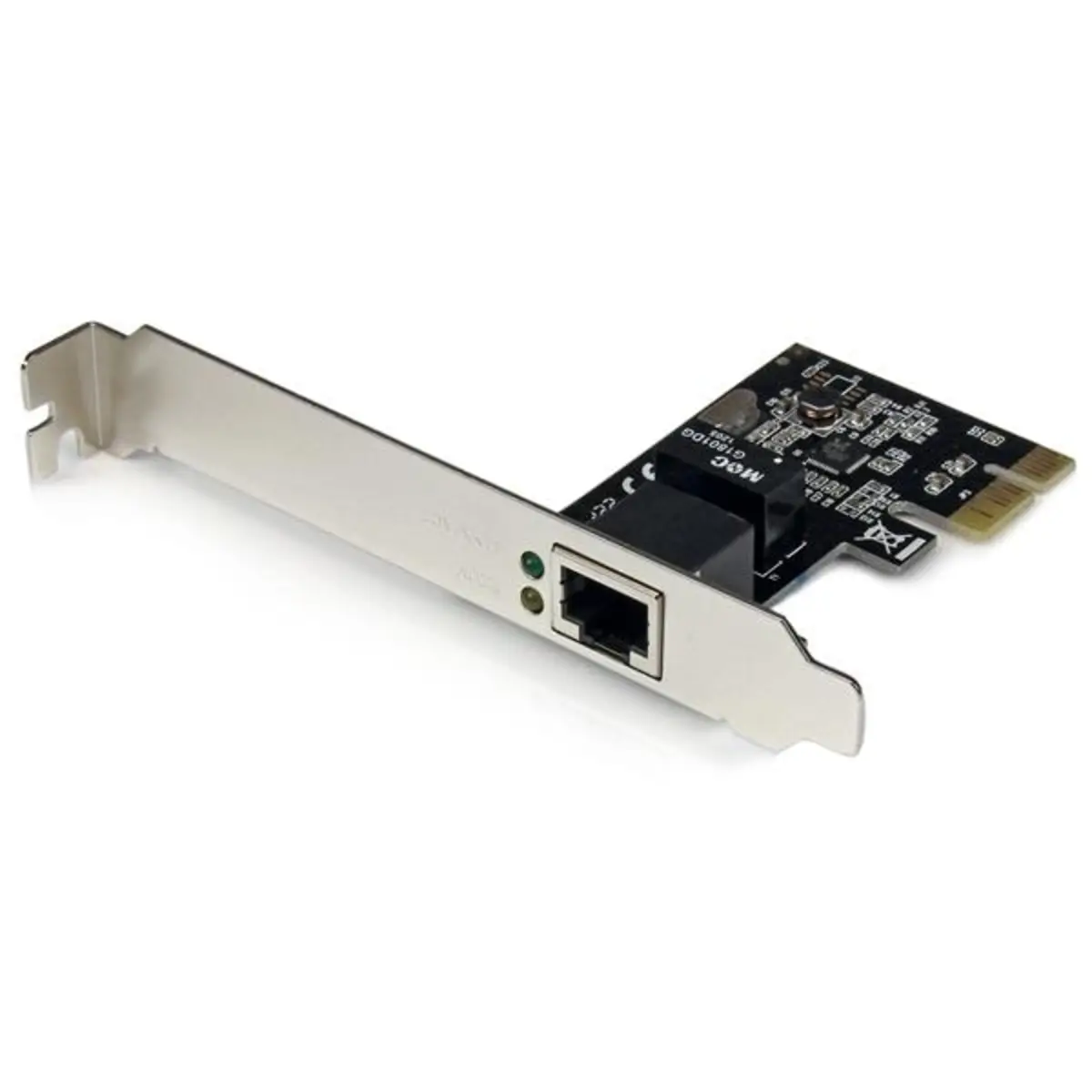

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

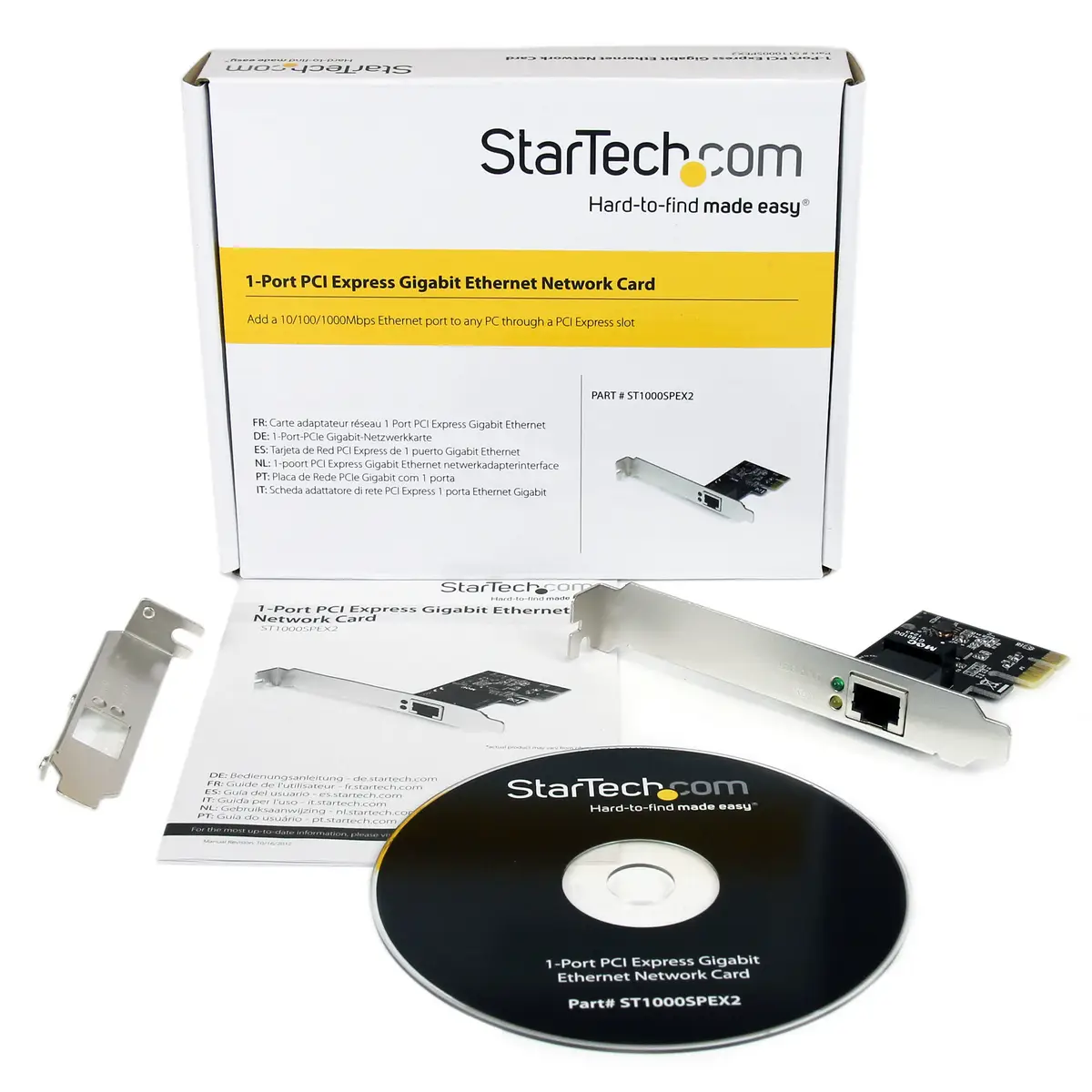

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Technical specifications
Logistics data
| Harmonized System (HS) code | 85176990 |
Software
| Drivers included | Y |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows |
Leistungen
| Mean time between failures (MTBF) | 376,212 std |
Weight & dimensions
| Weight | 40 g |
Protokolle
| Supported network protocols | CSMA/CD |
Kopfhörer
| Chipset | Realtek RTL8111E |
Data transmission
| Supported data transfer rates | 10/100/1000 Mbit/s |
Verpackungsdaten
| Package weight | 126 g |
| Package depth | 171 mm |
| Package width | 142 mm |
| Package height | 32 mm |
| Low-profile bracket | Y |
Sonstige Funktionen
| Interface | Ethernet |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Manual | Y |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | 0 - 100 |
| Operating temperature (T-T) | 0 - 70 |
Audio
| Internal | Y |
Ergonomics

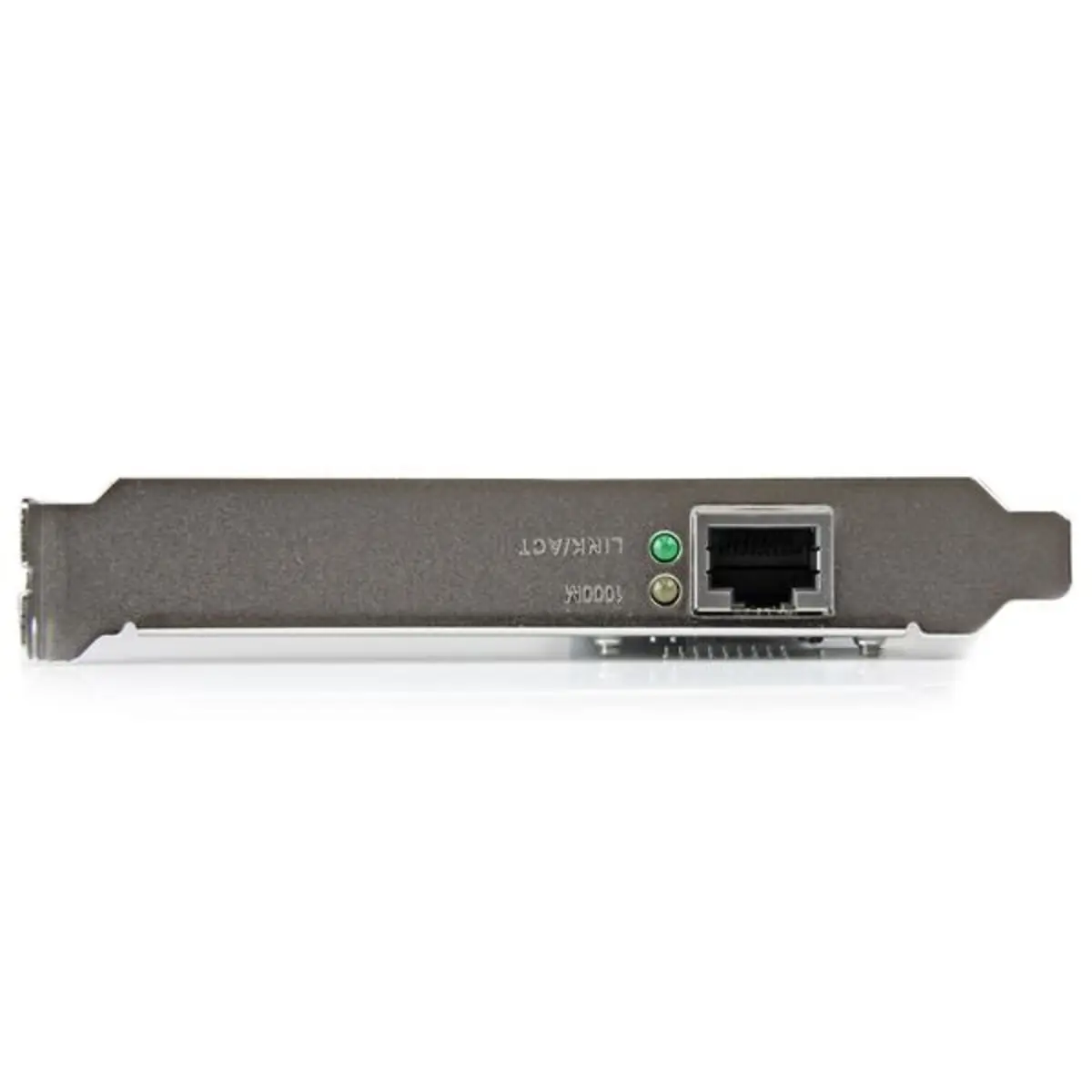

| LED indicators | Activity,Link |
Features
| Height | 18 mm |
| Width | 120.3 mm |
| Depth | 67.9 mm |
| Maximum data transfer rate | 1,000 Mbit/s |
Computer system
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
| Mac operating systems supported | Mac OS X 10.4 Tiger,MacOS X 10.5 Leopard |
Mouse
| Certification | CE, FCC |
Network
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Y |
| Wi-Fi | No |
| Wake-on-LAN ready | Y |
| Full duplex | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Jumbo frames support | Y |
| Jumbo frames | 9,000 |
| Auto MDIX IEEE | Y |
Tablet
| Connectivity technology | Wired |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Host interface | PCI Express |
Reviews
