- Components
- Power supply

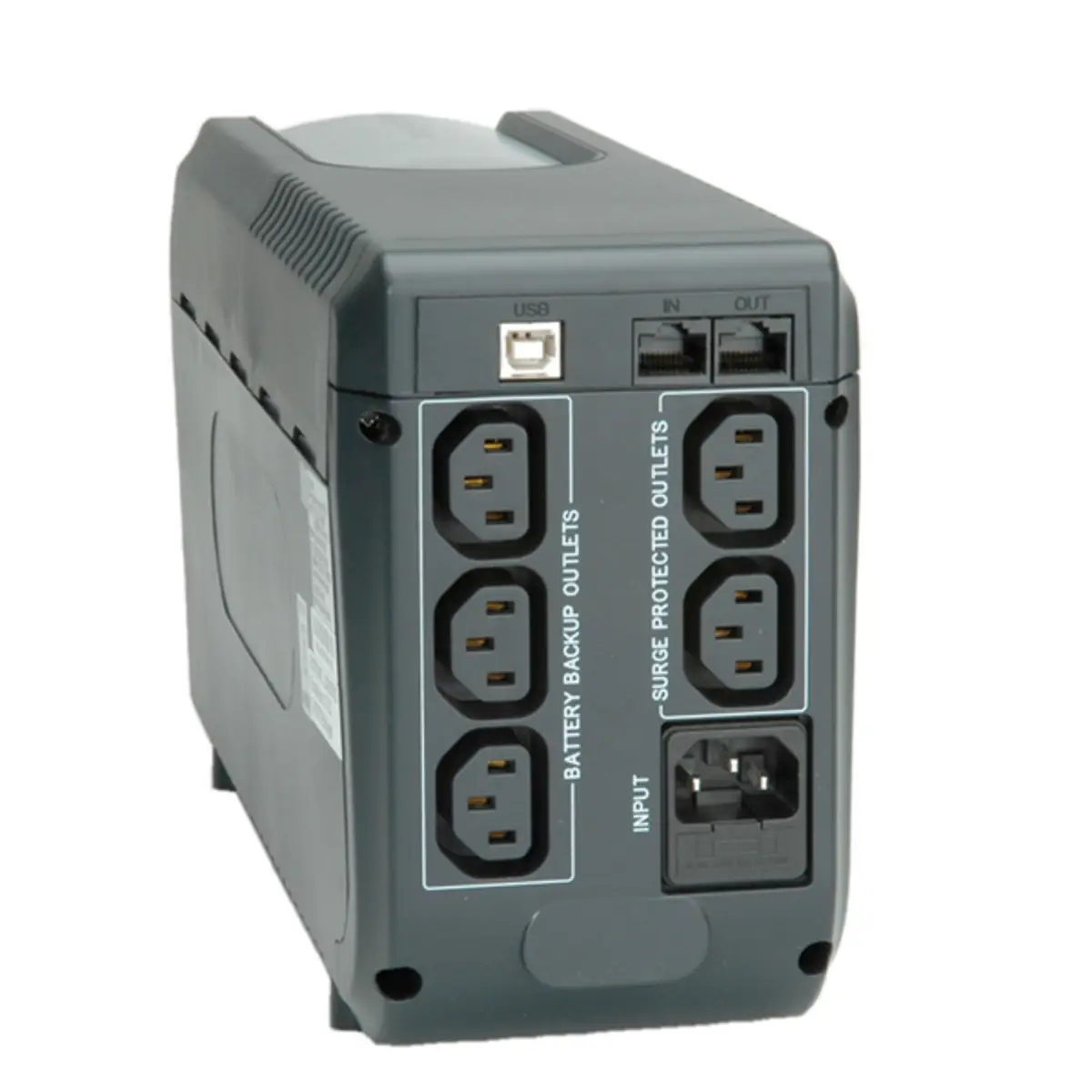

- DesignSecure 525 Line Interaktive USV
+1 Images
6 Images
Product description
- Compact designed UPS in futuristic design
- For Workstations and PCs
- LineInteractive UPS
- AVR (Automatic Voltage Regulation)
- Digital status display
- Integrated overvoltage protection
- Telephone/Modem connections
- USB Port for advanced Power Management Software (incl, in content of delivery)
- EMI/RFI Noise Filter
- Dimensions (HxLxW) 168 x 105 x 334 mm
- For Workstations and PCs
- LineInteractive UPS
- AVR (Automatic Voltage Regulation)
- Digital status display
- Integrated overvoltage protection
- Telephone/Modem connections
- USB Port for advanced Power Management Software (incl, in content of delivery)
- EMI/RFI Noise Filter
- Dimensions (HxLxW) 168 x 105 x 334 mm
Technical specifications
Design
| LED indicators | Y |
Anschlüsse und Schnittstellen
| USB 2.0 ports | 1 |
| Modem (RJ-11) ports | 2 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| AC outlets quantity | 5 AC out |
Merkmale
| Cooling type | Passive |
| Number of output phases | 1 |
| UPS topology | Line-Interactive |
| Automatic Voltage Regulation (AVR) | Y |
| Output power capacity | 0.525 kVA |
| Input operation voltage (min) | 230 V |
| Output operation voltage (min) | 230 V |
Batterie
| Hot-swap battery | N |
| Typical backup time at half load | 6 min |
| Typical backup time at full load | 3 min |
Leistung
| Power protection features | Over voltage |
| Surge protection | Y |
Betriebsbedingungen
| Operating temperature (T-T) | 0 - 40 |
Sonstige Funktionen
| Dimensions (WxDxH) | 168 x 105 x 334 |
| Input frequency | 50 |
| Output power | 315 W |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
| Number of phases | 1 |
Gewicht und Abmessungen
| Weight | 6,300 g |
| Height | 168 mm |
| Width | 105 mm |
| Depth | 334 mm |
