Name: SmartConnect UPS SMC 1000VA Rack 2HE
Brand: 60000582
SKU: 168261

text.skipToContent text.skipToNavigation

ID: 168261 APC ID: SMC1000I-2UC

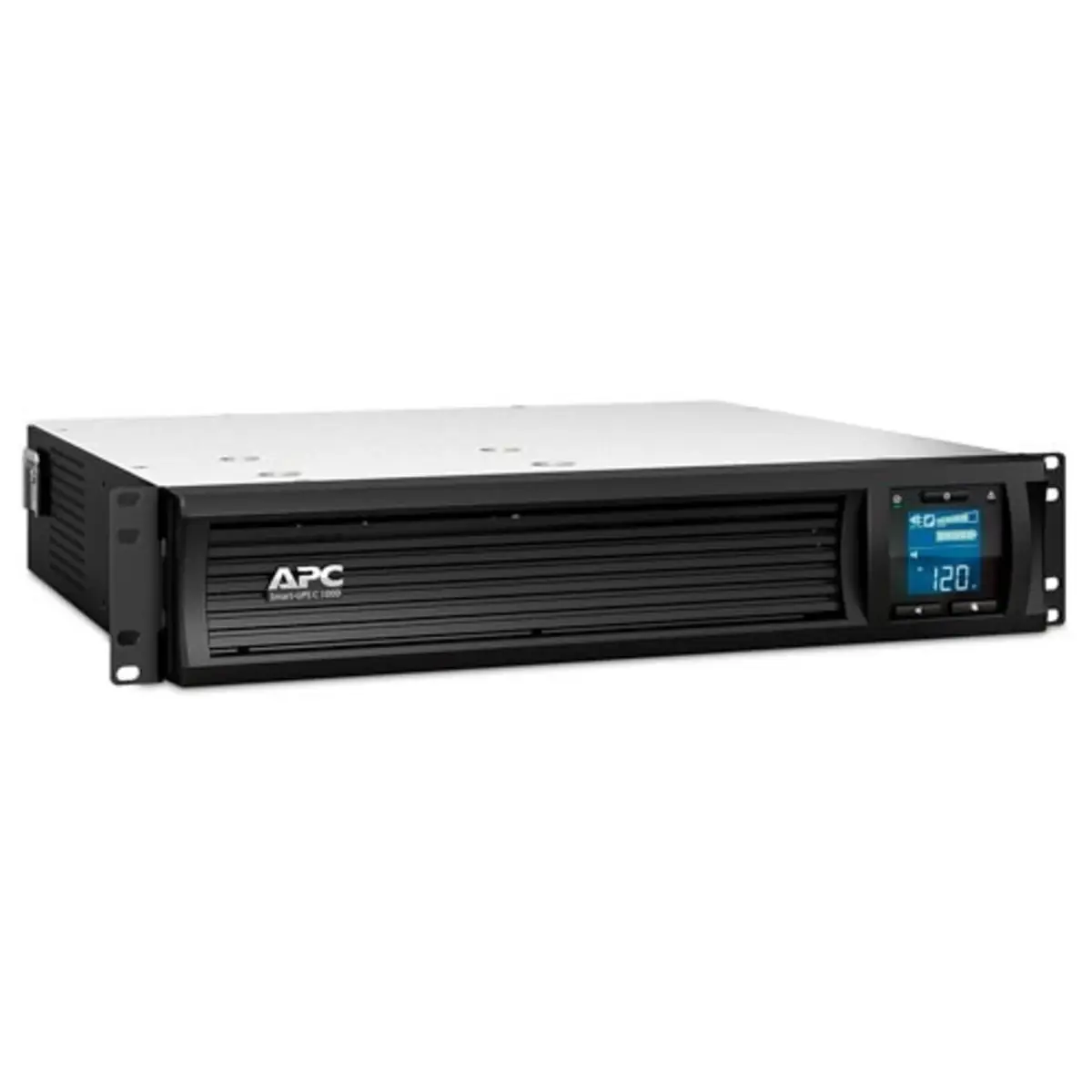

SmartConnect UPS SMC 1000VA Rack 2HE

Detailed product title

APC SmartConnect UPS SMC 1000VA Rack 2HE

Cable length 2.44

Product colour Black

ship in 4-7 days

Added to cart

ship in 4-7 days

Product description

Supports cold start
Allows temporary battery operation if mains power fails.
Green operating mode
Patent-pending operating mode in which unused electrical components are switched off when power conditions are good, allowing very high operating efficiency to be achieved without compromising safety.
High online efficiency
Reduces electricity costs, generates less waste heat.
LCD status display
Important UPS status parameters at a glance: Multiple status displays with bar charts on load and battery status.
Purely sinusoidal output signal in battery operation
Simulates mains power for the highest possible compatibility with servers and sensitive electronic systems with active power factor correction.
SmartConnect
Automatic notifications, firmware updates and advanced support services are made available with the innovative, easy-to-use remote monitoring feature.
Charging the battery with temperature compensation
Extends the life of the battery by regulating the charging voltage according to the actual battery temperature.

Technical specifications

Logistics data

Products per pallet

Design

Product colour	Black

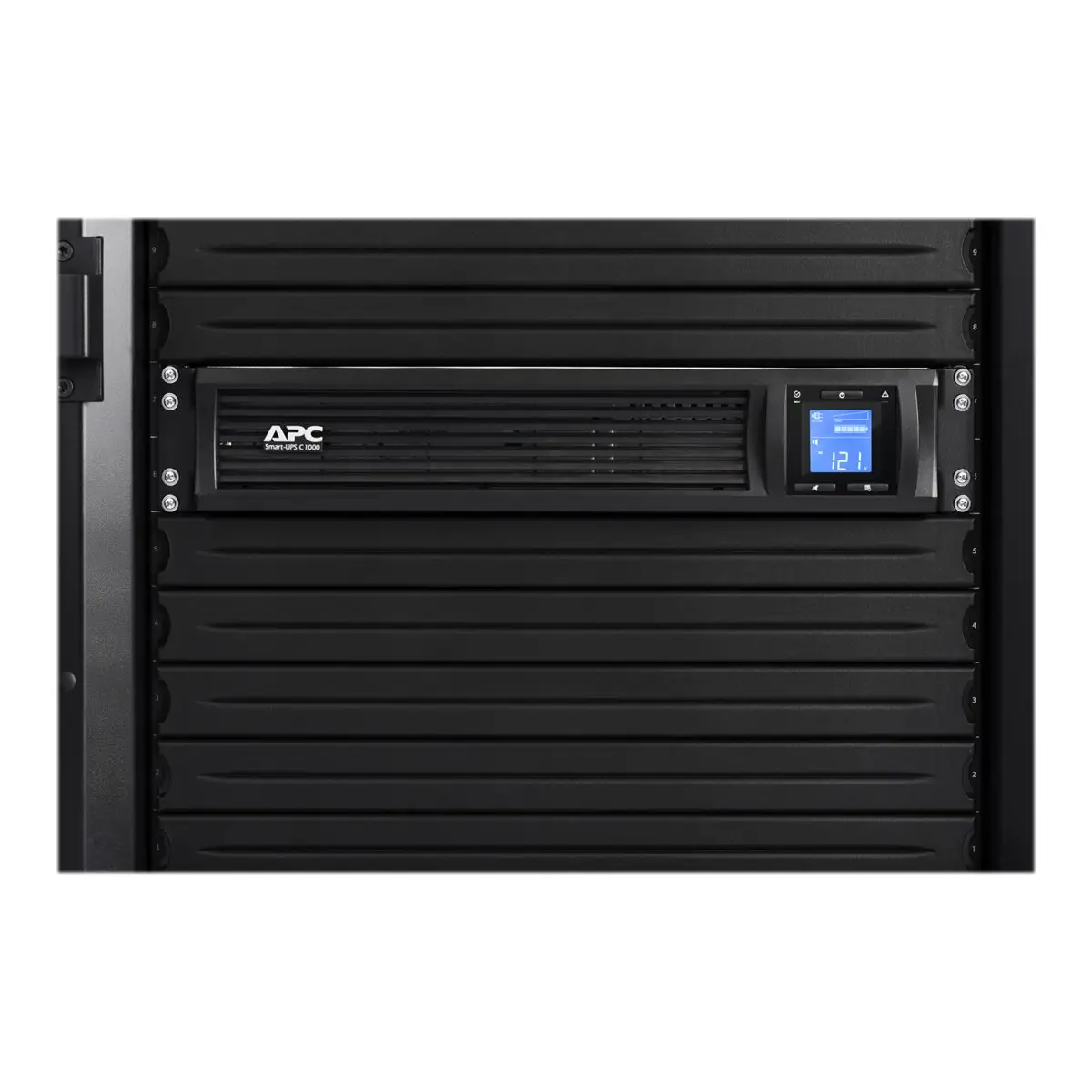

Rack capacity	2U

Power

Lieferumfang

Verpackungsdaten

Sonstige Funktionen

Sustainability

Sustainability certificates	ENERGY STAR,Green Premium
Compliance certificates	RoHS

Operational conditions

Operating relative humidity (H-H)	0 - 95
Storage temperature (T-T)	-15 - 45
Operating temperature (T-T)	0 - 40
Operating altitude	0 - 3000
Storage relative humidity (H-H)	0 - 95
Non-operating altitude	0 - 15000

Battery

Number of batteries supported	1
Waveform	Sine
Replacement battery cartridge	APCRBC124
Battery life (max)	6

Features

Cable length	2.44
Audible alarm(s)	Yes
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery,Low battery alarm,Overload alarm
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	680
Output power capacity	1
Output voltage Total Harmonic Distortion (THD)	5
Input operation voltage (max)	300
Input operation voltage (min)	170
Output operation voltage (min)	220
Output operation voltage (max)	240
Output frequency	50/60

Mouse

Form factor	Rackmount
Certification	CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH

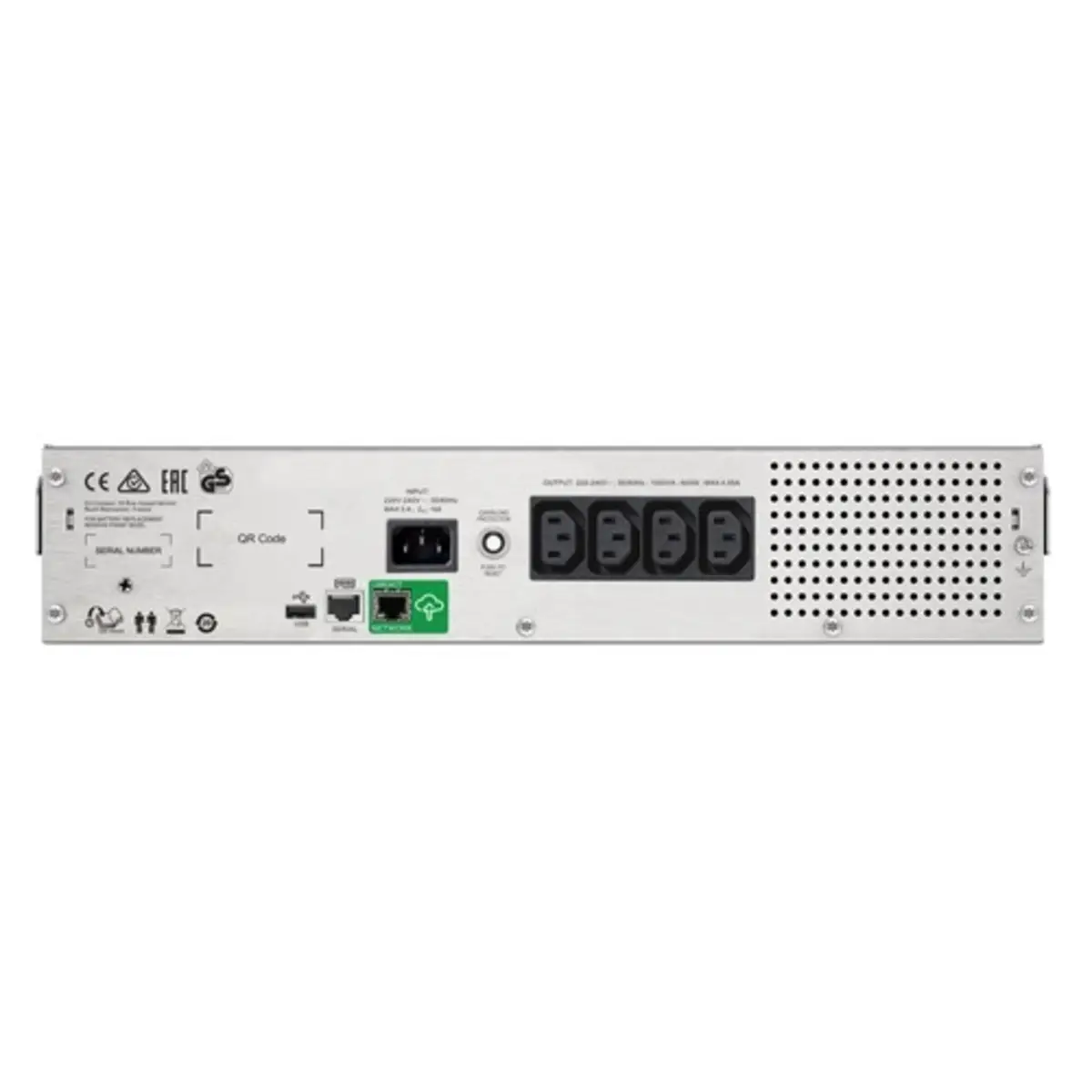

Ports & interfaces
