SRV1KIL, Doppelwandler (Online), 1 kVA, 800 W, Reiner Sinus, 160 V, 280 V

Product description

Automatic internal bypass
The purely static bypass switch without a bridging contactor ensures quick and reliable switching to and from the bypass. Designed for 125% rated load.
Automatic restart of connected loads after UPS shutdown
Automatically powers up the connected devices when the mains voltage returns.
ECO mode
Operating mode in which unneeded electrical components are bypassed when the power supply is intact to enable efficient operation without affecting availability
Correction of the input current factor
Reduces installation costs as smaller generators and thinner cables can be used.
Intelligent battery management
An intelligent precision charging system optimizes the performance, service life and reliability of batteries.
Intelligent Card Slot
Equip your UPS with individual functions using management cards.
LCD graphic screen
Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
Serial interface
Provides management of the UPS via a serial port.
USB interface
Allows you to manage the UPS via the USB port.

Technical specifications

Leistungen

ECO mode

Design

Product colour

Black

Power

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 std

Lieferumfang

Cables included

USB cable

Sonstige Funktionen

Manual	Y
USB port	Y
Input frequency	40/70
Output power	800 W
Nominal input voltage	230
Nominal output voltage	230

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating relative humidity (H-H)	0 - 95
Storage temperature (T-T)	-20 - 50
Operating temperature (T-T)	0 - 40
Operating altitude	0 - 3000
Storage relative humidity (H-H)	0 - 95
Non-operating altitude	0 - 14763.6

Battery

Waveform	Pure sine
Automatic battery test	Y

Ergonomics

LED indicators

Features

Audible alarm(s)	Y
Crest factor	3:1
UPS topology	Double-conversion (Online)
Audible alarm modes	Alarm when on battery,Low battery alarm,Overload alarm
Auto-restart	Y
Surge energy rating	600 J
Output power capacity	1 kVA
Output voltage Total Harmonic Distortion (THD)	3 %
Input operation voltage (max)	280 V
Input operation voltage (min)	160 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60

Mouse

Form factor	Tower
Certification	CE, IEC 62040-1-1, IEC 62040-1-2 REACH

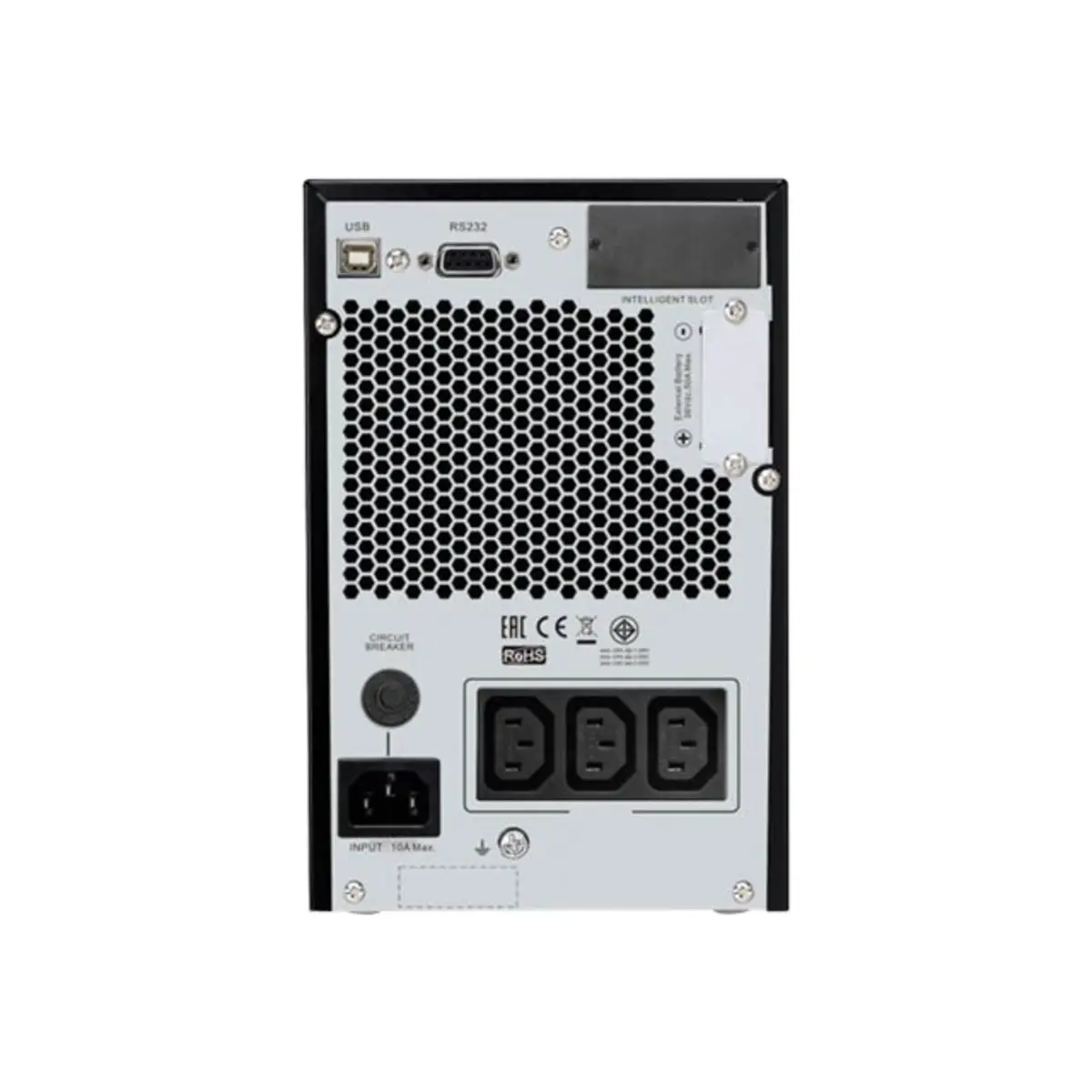

Ports & interfaces

USB 2.0 ports quantity	1
Serial ports quantity	1
Serial interface type	RS-232
Power plug	C14 coupler
AC outlet types	C13 coupler
Serial interface	Y
SmartSlot	Y
AC outlets quantity	3 AC out

Weight & dimensions

Weight	24,000 g
Height	238 mm
Width	290 mm
Depth	400 mm
Battery weight	10,600 g
Battery width	235 mm
Battery height	330 mm
Battery depth	365 mm

Reviews

ID: 253295 APC ID: SRV1KIL

SRV1KIL, Doppelwandler (Online), 1 kVA, 800 W, Reiner Sinus, 160 V, 280 V

Detailed product title

APC SRV1KIL. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 1 kVA, Ausgangsleistung: 800 W. AC-Steckertypen: C13-Koppler, Stecker: C14-Koppler, Anzahl der AC-Ausgänge: 3 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA), Akkuladezeit: 4 h. Formfaktor: Tower, Produktfarbe: Schwarz, Display-Typ: LCD. Breite: 290 mm, Tiefe: 400 mm, Höhe: 238 mm
