- SRVPM1KIL, Doppelwandler (Online), 1 kVA, 800 W, Sine, 160 V, 280 V
3 Images
Product description

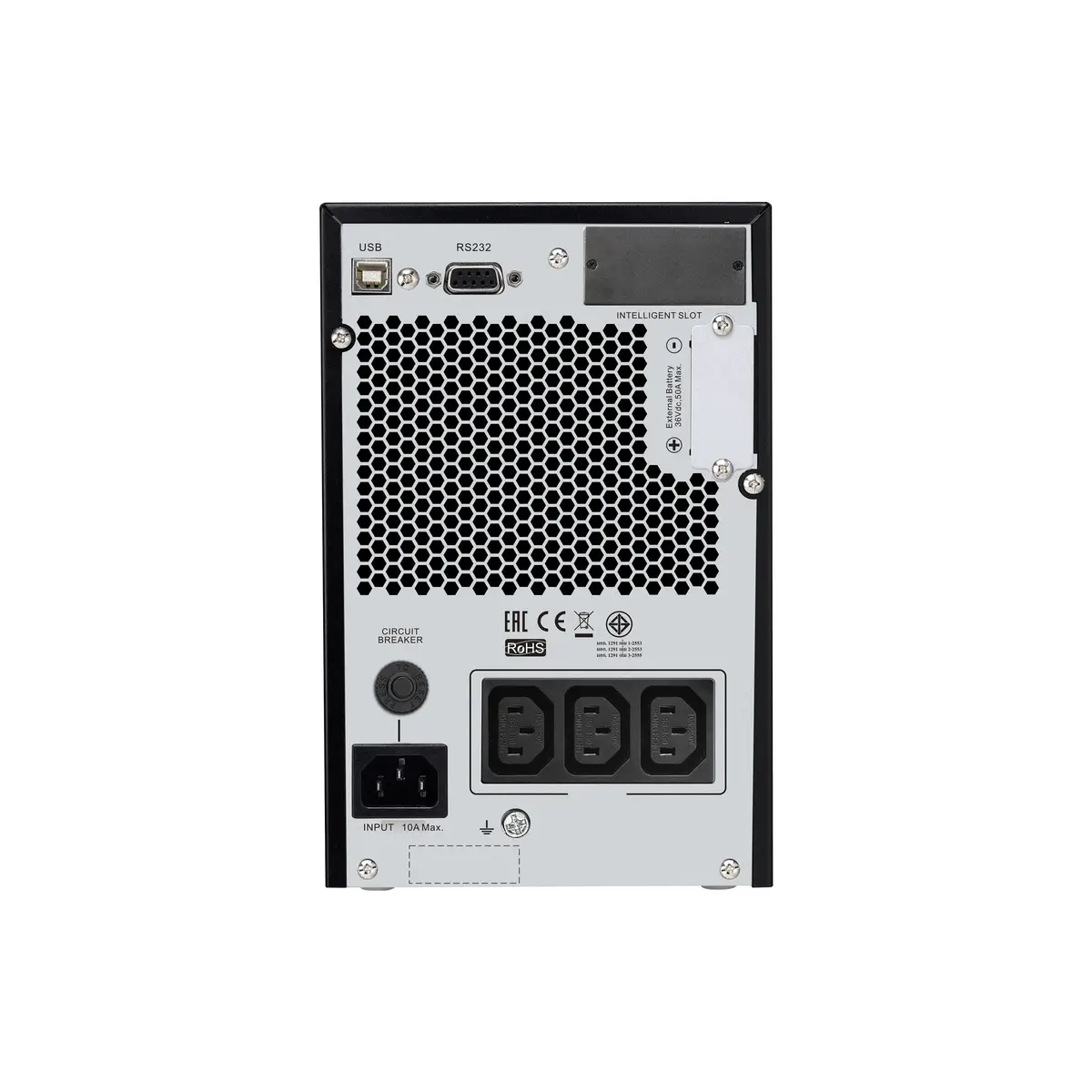

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Technical specifications
Leistungen
| ECO mode | Y |
Weight & dimensions
| Weight | 9,300 g |
| Battery weight | 10,600 g |
| Battery width | 235 mm |
| Battery height | 330 mm |
| Battery depth | 365 mm |
Power
| Battery recharge time | 4 std |
Lieferumfang
| Cables included | USB cable |
Sonstige Funktionen
| Manual | Y |
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 800 W |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
Sustainability
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -20 - 50 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 14763.6 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Waveform | Sine |
| Automatic battery test | Y |
Ergonomics
| LED indicators | Y |
Features
| Height | 223 mm |
| Width | 145 mm |
| Depth | 288 mm |
| Audible alarm(s) | Y |
| Crest factor | 3:1 |
| UPS topology | Double-conversion (Online) |
| Audible alarm modes | Alarm when on battery,Low battery alarm,Overload alarm |
| Auto-restart | Y |
| Surge energy rating | 600 J |
| Output power capacity | 1 kVA |
| Output voltage Total Harmonic Distortion (THD) | 3 % |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 160 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
Mouse
| Form factor | Tower |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial interface | Y |
| SmartSlot | Y |
| AC outlets quantity | 3 AC out |
Design
| Product colour | Black |
Downloads
521390_document_EN_001
PDF Download
ID: 521390
APC ID: SRVPM1KIL
SRVPM1KIL, Doppelwandler (Online), 1 kVA, 800 W, Sine, 160 V, 280 V
Detailed product title
Detailed product title
APC Easy UPS On-Line, 1000VA/800W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Display type: LCD. Compliance certificates: RoHS, Certification: CE, IEC 62040-1-1, IEC 62040-1-2 REACH
