- 1 Port Serielle Schnittstellenkarte PCIe mit 16950 UART - Windows und Linux
+2 Images
7 Images
Product description

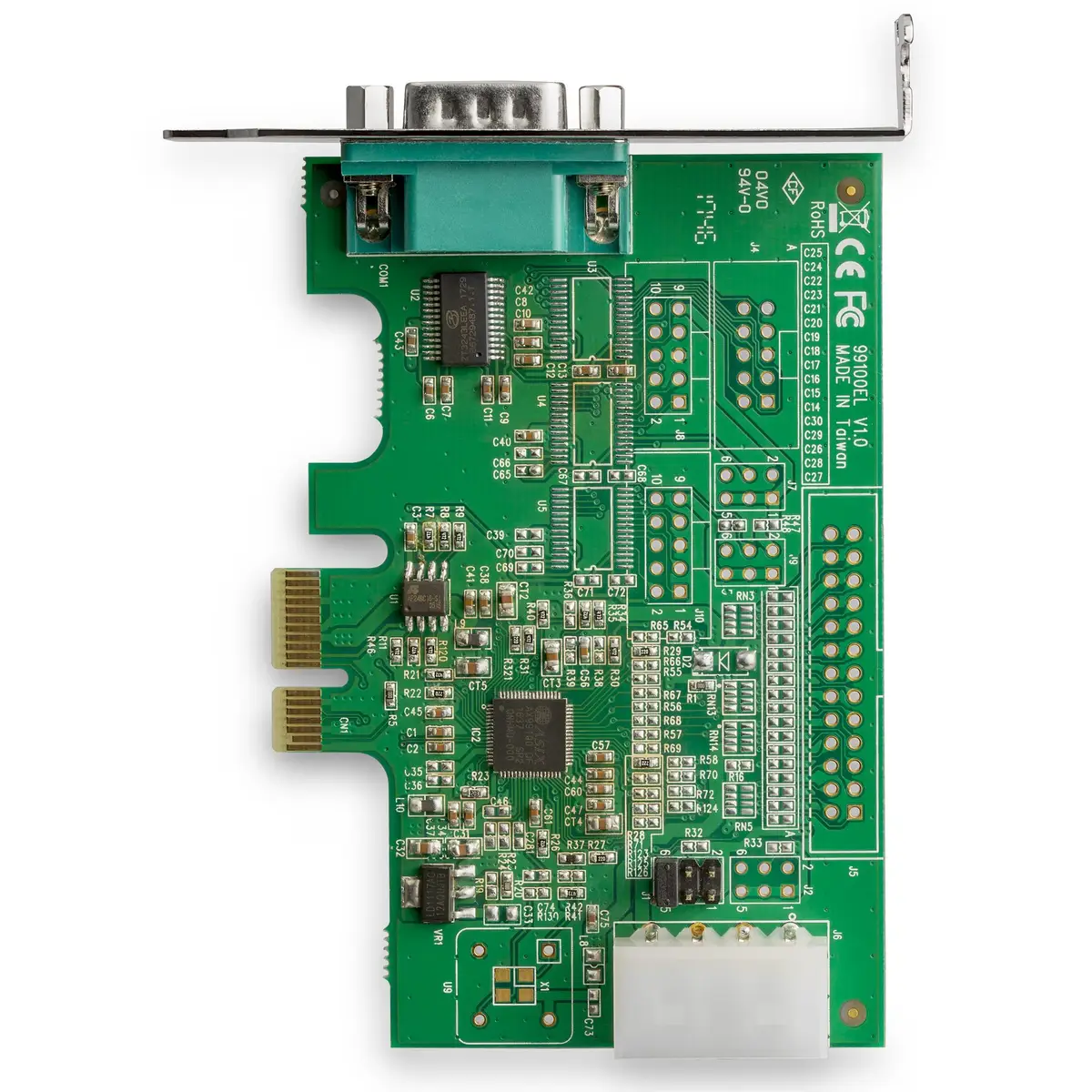

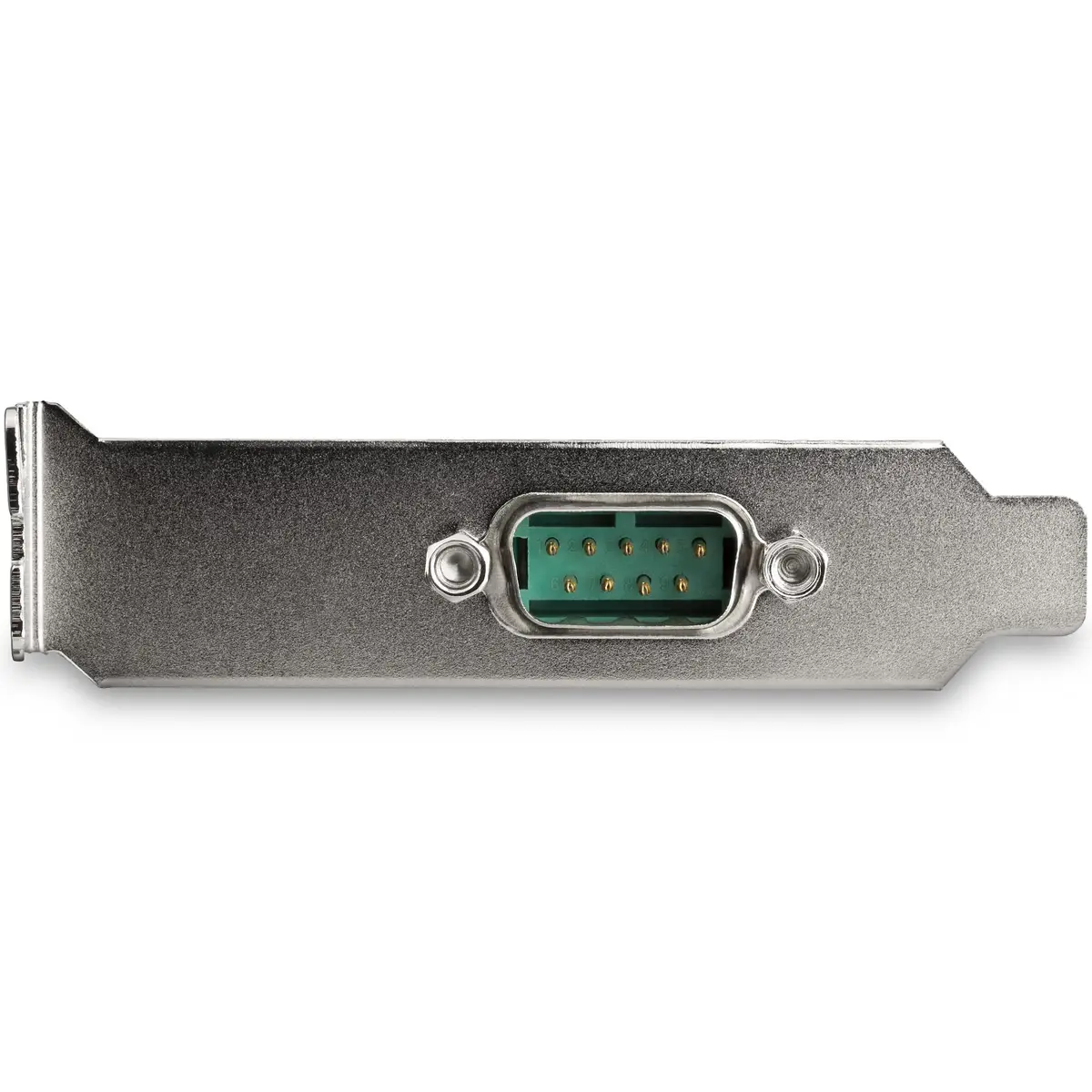

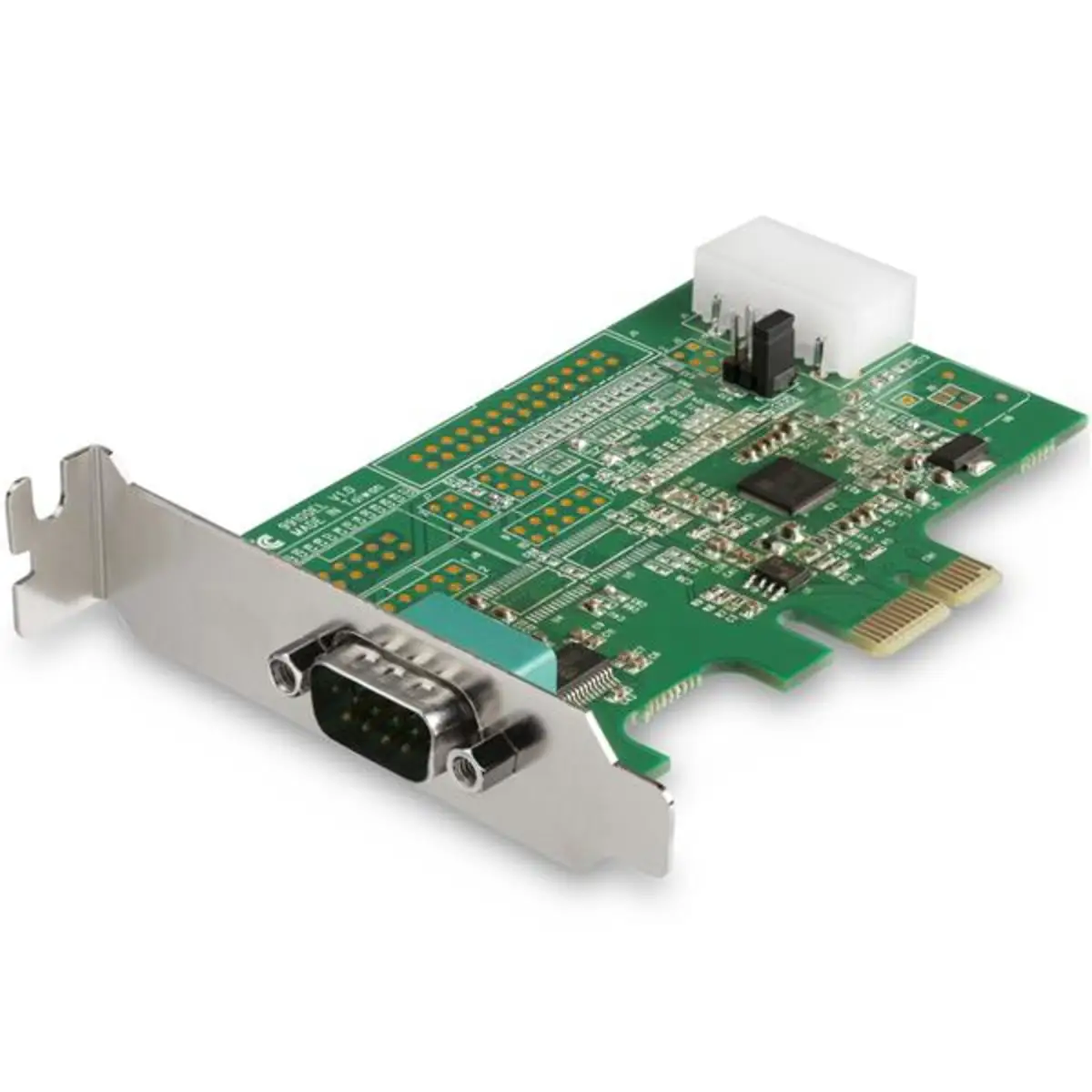

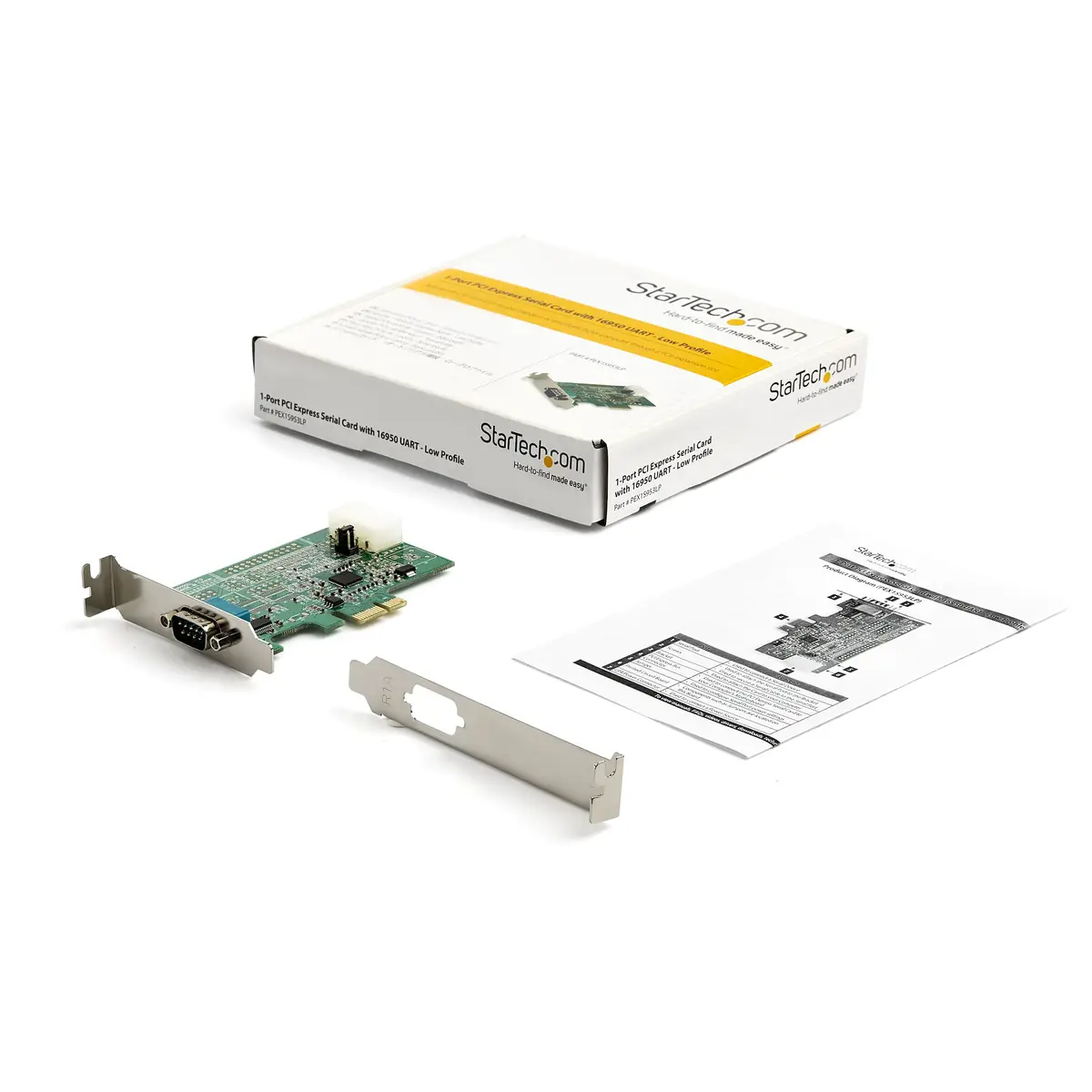

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® CompatibleThis RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:• Compatible with industry standard 16950 UART• Supports max baud rate of up-to 921.4Kbps• Provides 5/12V power output on Pin 9 when external power is connected• 128-byte depth FIFO per transmitter and receiver• Supports 9, 8, 7, 6, 5 data bits• Asix AX99100 chipset• PCI Express 1.1 compliantPEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage
Technical specifications
Design
Product colour | Green |
Anschlüsse und Schnittstellen
Serial ports quantity | 1 |
Host interface | PCIe |
Nachhaltigkeit
Sustainability certificates | CE,RoHS |
Sustainability compliance | Y |
Systemanforderung
Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Kopfhörer
Chipset | Asix AX99100 |
Technische Details
Parity bit | Even,Mark,N,Odd,Space |
Data bits | 5,6,7,8,9 |
Stop bits | 1,1.5,2 |
Baud rate | 921.4 Kbit/s |
Verpackungsdaten
Package weight | 112 g |
Package depth | 170 mm |
Package width | 142 mm |
Package height | 30 mm |
Betriebsbedingungen
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -20 - 80 |
Operating temperature (T-T) | 0 - 70 |
Sonstige Funktionen
Manual | Y |
Gewicht und Abmessungen
Weight | 44 g |
Height | 150 mm |
Width | 67 mm |
Depth | 98 mm |
Logistische Daten
Master (outer) case height | 315 mm |
Master (outer) case width | 360 mm |
Master (outer) case length | 685 mm |
Products per master (outer) case | 75 ST |
