- Network
- Network cards & adapter

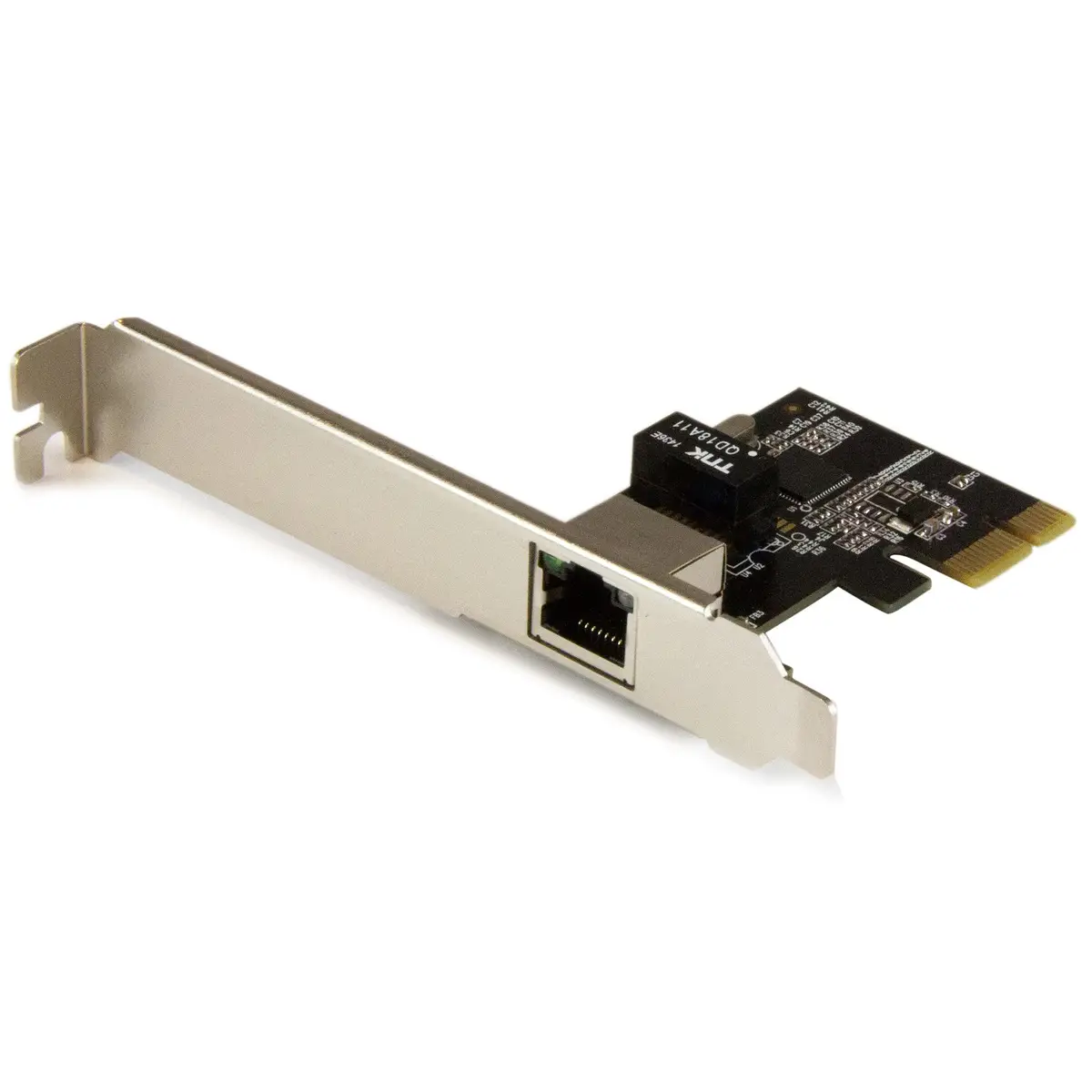

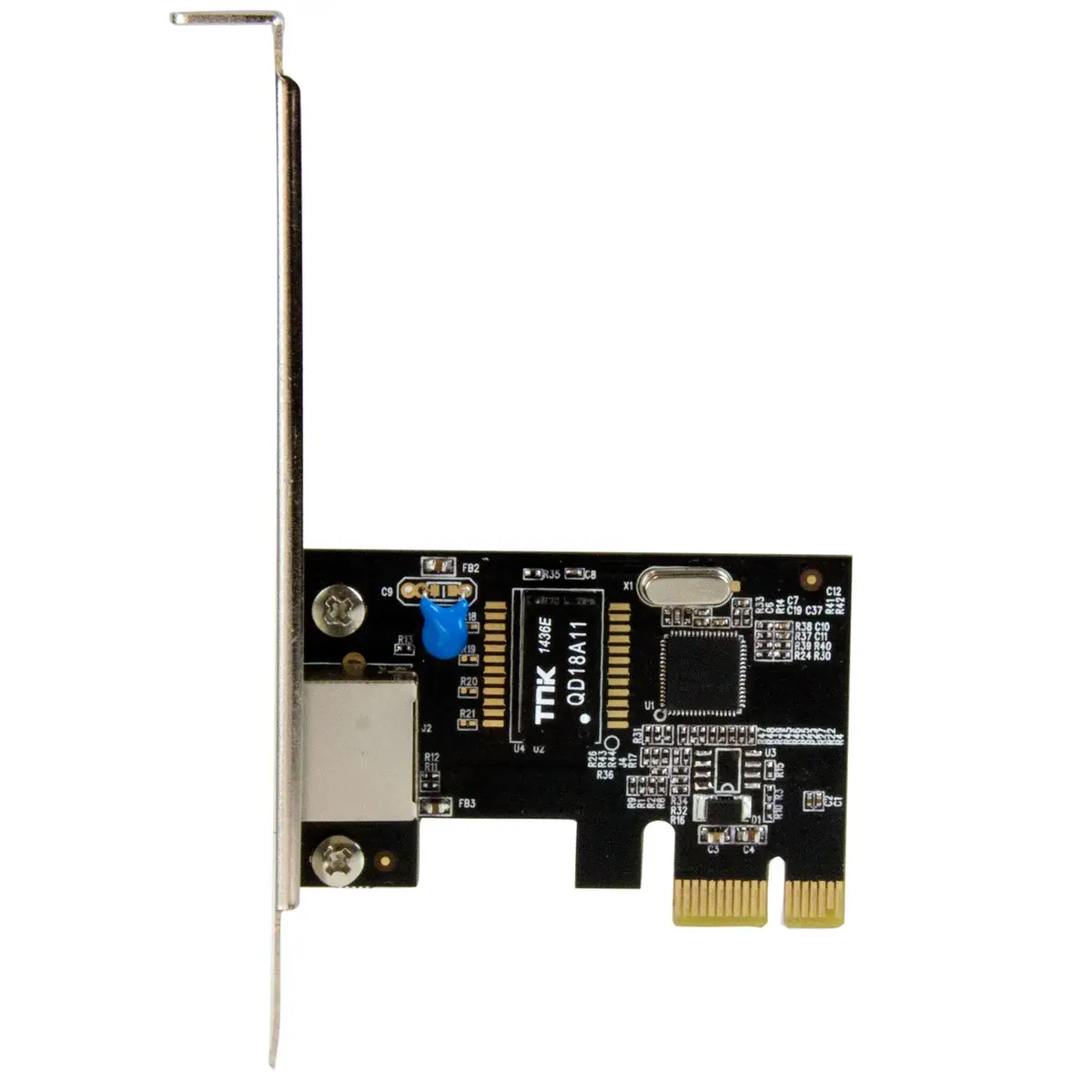

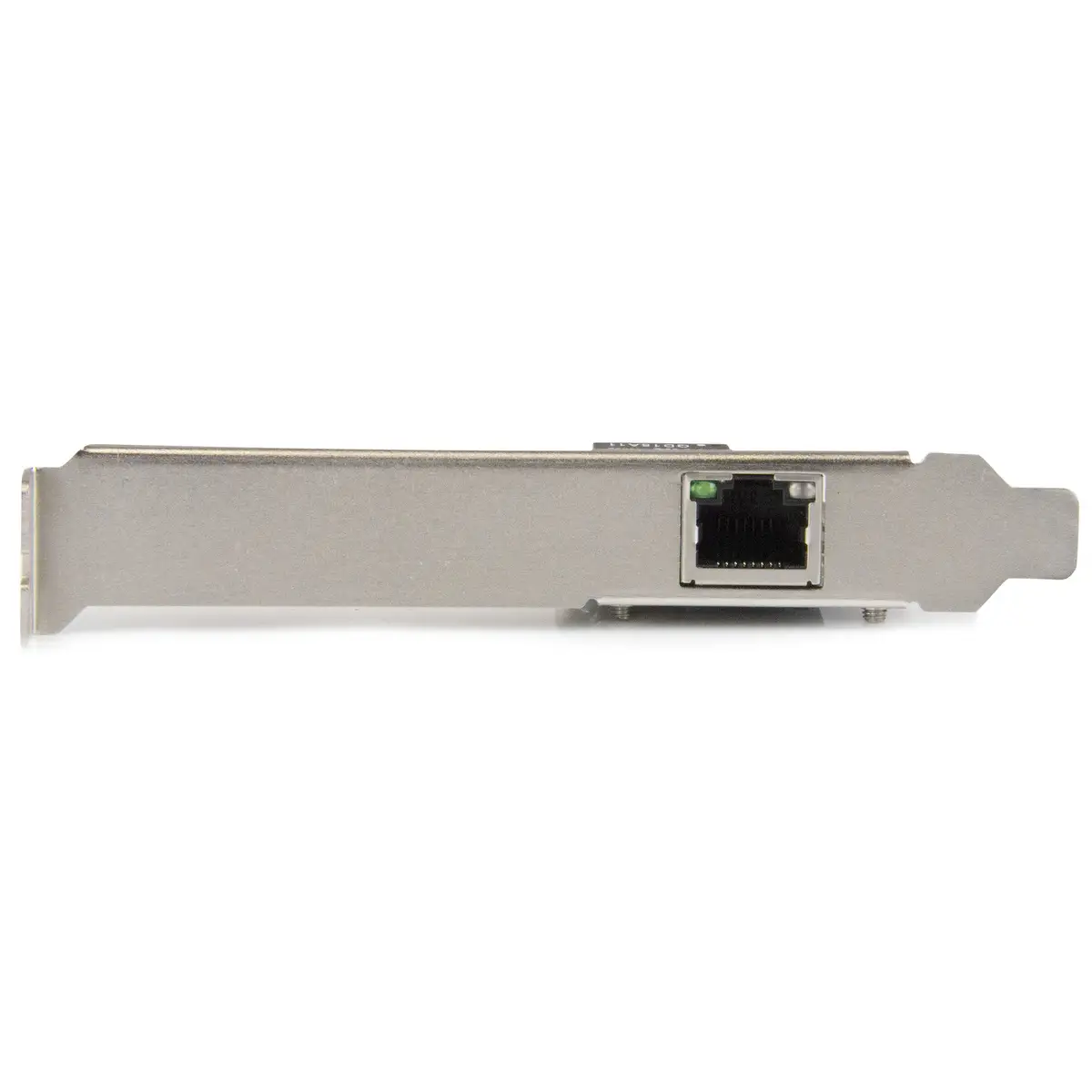

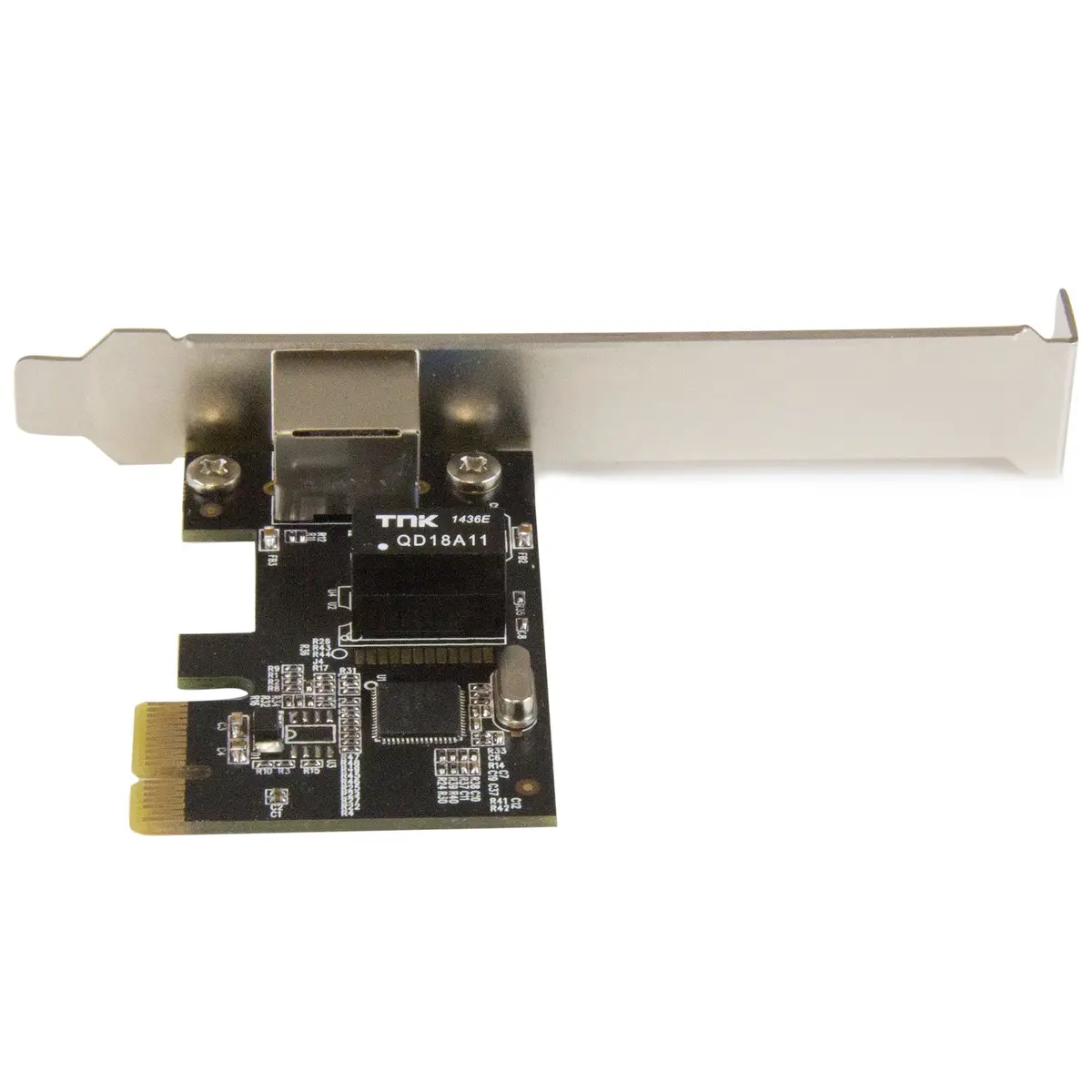

- 1 Port Ethernet Netzwerkkarte PCI Express Gigabit Intel I210 NIC










5 Images










Product description
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.
The performance and reliability you demand in network connectivity
This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

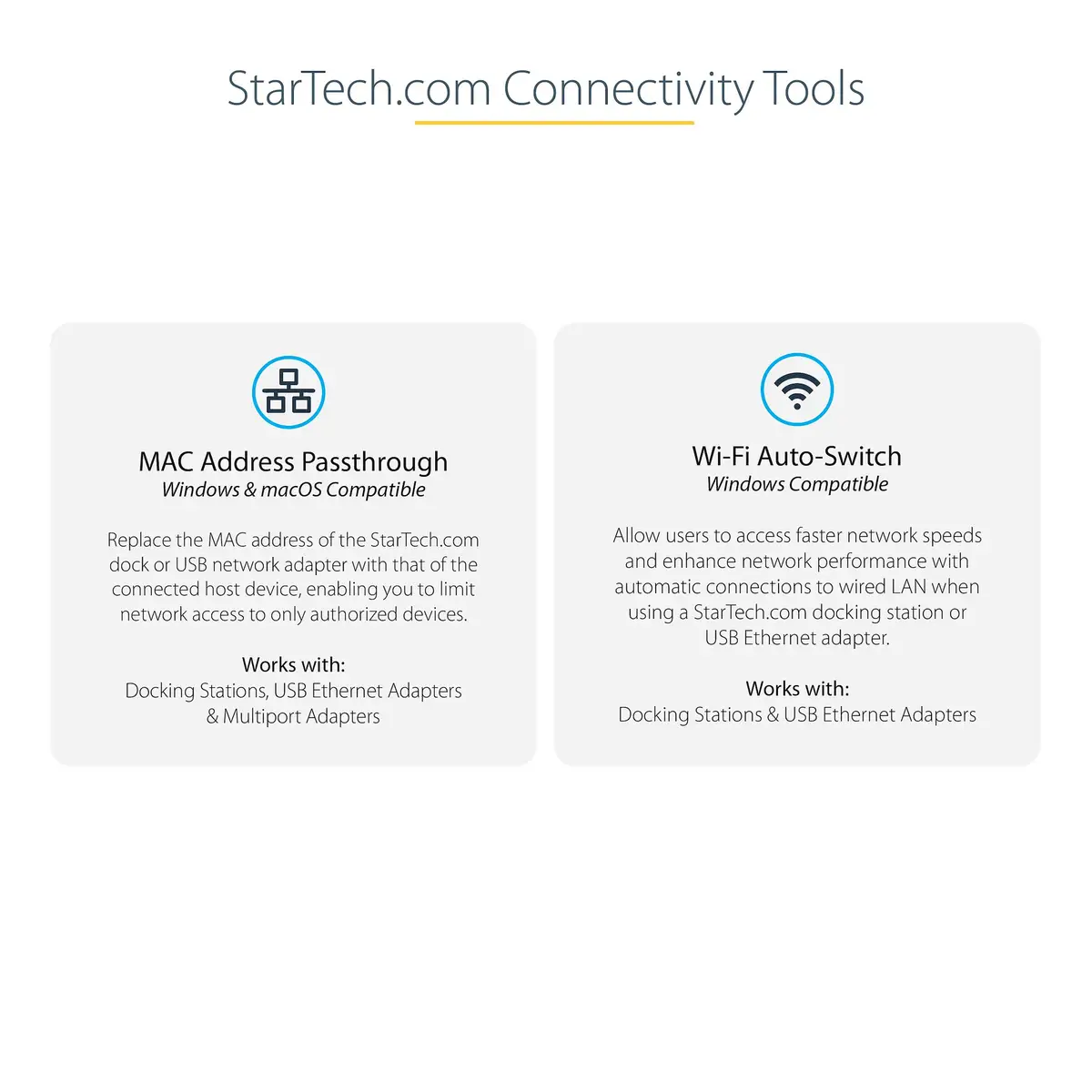

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.
The performance and reliability you demand in network connectivity
This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Technical specifications
Design
Component for | PC/Server |
Logistics data
Harmonized System (HS) code | 85176990 |
Master (outer) case height | 357 mm |
Master (outer) case width | 304 mm |
Master (outer) case length | 592 mm |
Products per master (outer) case | 80 ST |
Software
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 R2,Wind |
Systemanforderung
Linux operating systems supported | Y |
Kopfhörer
Chipset | Intel I210-AT |
Lieferumfang
Mounting brackets included | Y |
Verpackungsdaten
Package weight | 100 g |
Package depth | 170 mm |
Package width | 142 mm |
Package height | 28 mm |
Sonstige Funktionen
Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IE |
Manual | Y |
Sustainability
Sustainability certificates | CE,RoHS |
Sustainability compliance | Y |
Operational conditions
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 5 - 50 |
Audio
Internal | Y |
Gewicht und Abmessungen
Weight | 38 g |
Height | 18 mm |
Width | 66 mm |
Depth | 120 mm |
Ergonomics
LED indicators | Activity |
Features
Maximum data transfer rate | 2,000 Mbit/s |
Computer system
Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Network
Cabling technology | 10/100/1000BaseT(X) |
Wake-on-LAN ready | Y |
Full duplex | Y |
Ethernet LAN data rates | 10,100,1000 |
Jumbo frames support | Y |
Auto-negotiation | Y |
VLAN tagging | Y |
Auto MDIX IEEE | Y |
Ports & interfaces
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN | Y |
Host interface | PCI Express |
ID: 139830
StarTech.com ID: ST1000SPEXI
1 Port Ethernet Netzwerkkarte PCI Express Gigabit Intel I210 NIC
Detailed product title
Detailed product title
StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Black, Metallic





5 Images
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.
The performance and reliability you demand in network connectivity
This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.
The performance and reliability you demand in network connectivity
This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Technical specifications
Design
Component for | PC/Server |
Logistics data
Harmonized System (HS) code | 85176990 |
Master (outer) case height | 357 mm |
Master (outer) case width | 304 mm |
Master (outer) case length | 592 mm |
Products per master (outer) case | 80 ST |
Software
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 R2,Wind |
Systemanforderung
Linux operating systems supported | Y |
Kopfhörer
Chipset | Intel I210-AT |
Lieferumfang
Mounting brackets included | Y |
Verpackungsdaten
Package weight | 100 g |
Package depth | 170 mm |
Package width | 142 mm |
Package height | 28 mm |
Sonstige Funktionen
Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IE |
Manual | Y |
Sustainability
Sustainability certificates | CE,RoHS |
Sustainability compliance | Y |
Operational conditions
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 5 - 50 |
Audio
Internal | Y |
Gewicht und Abmessungen
Weight | 38 g |
Height | 18 mm |
Width | 66 mm |
Depth | 120 mm |
Ergonomics
LED indicators | Activity |
Features
Maximum data transfer rate | 2,000 Mbit/s |
Computer system
Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Network
Cabling technology | 10/100/1000BaseT(X) |
Wake-on-LAN ready | Y |
Full duplex | Y |
Ethernet LAN data rates | 10,100,1000 |
Jumbo frames support | Y |
Auto-negotiation | Y |
VLAN tagging | Y |
Auto MDIX IEEE | Y |
Ports & interfaces
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN | Y |
Host interface | PCI Express |
