4 Images
Product description
Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches.
- Layer 2
- 24-Ports + 4 Gigabit SFP uplinks
Stackable
Allows stacking of up to 8 switches and 80 Gbps bandwidth with the optional Cisco FlexStack+ module.
Auto Smart Ports
Automatically configures ports based on device type for rapid deployment with Auto Smart Ports.
Cisco TrustSec
Helps enable scalable and dynamic role-based access control with Cisco TrustSec.
NetFlow Lite
Built for application visibility and control - NetFlow Lite prioritizes business applications.
Limited lifetime warranty
The enhanced limited lifetime warranty provides the same terms as Cisco’s standard limited lifetime warranty, but adds next business day delivery of
replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC)
support.
- Layer 2
- 24-Ports + 4 Gigabit SFP uplinks
Stackable
Allows stacking of up to 8 switches and 80 Gbps bandwidth with the optional Cisco FlexStack+ module.
Auto Smart Ports
Automatically configures ports based on device type for rapid deployment with Auto Smart Ports.
Cisco TrustSec
Helps enable scalable and dynamic role-based access control with Cisco TrustSec.
NetFlow Lite
Built for application visibility and control - NetFlow Lite prioritizes business applications.
Limited lifetime warranty
The enhanced limited lifetime warranty provides the same terms as Cisco’s standard limited lifetime warranty, but adds next business day delivery of
replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC)
support.
Technical specifications
Design
| Stackable | Y |
Logistics data
| Harmonized System (HS) code | 85176990 |
Leistungen
| Memory type | DRAM |
| Mean time between failures (MTBF) | 324,280 std |
| Physical stacking (units) | 8 |
Protokolle
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
Systemanforderung
| Processor frequency | 600 MHz |
Power
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power supply included | Y |
Lieferumfang
| Cables included | AC |
Data transmission
| Number of static routes | 1,000 |
| Number of queues | 8 |
| Throughput | 71.4 Mpps |
Verpackungsdaten
| User guide | Y |
Certificates
| Safety | UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1, |
Power supply
| Power consumption (typical) | 49 W |
Sonstige Funktionen
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,I |
| Rack mounting | Y |
| Power LED | Y |
| Input current | 5 |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 39 dB |
| Switching capacity | 216 Gbit/s |
Operational conditions
| Operating relative humidity (H-H) | 10 - 95 |
| Storage temperature (T-T) | -25 - 70 |
| Operating temperature (T-T) | -5 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 10 - 95 |
| Non-operating altitude | 0 - 4000 |
Gewicht und Abmessungen
| Weight | 5,800 g |
| Height | 45 mm |
| Width | 445 mm |
| Depth | 368 mm |
Ergonomics
| LED indicators | Y |
Computer system
| Built-in processor | Y |
Network
| Full duplex | Y |
| MAC address table | 16,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Number of VLANs | 1,023 |
| Jumbo frames | 9,216 |
| Auto-negotiation | Y |
| Virtual LAN features | Private VLAN |
| Rate limiting | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
Multicast features
| Multicast support | Y |
| Number of multicast groups filtered | 1,000 |
Security
| Security algorithms | 802.1x RADIUS,SNMP,SSH |
| Access Control List (ACL) | Y |
| Access Control List (ACL) rules | 3 |
| IGMP snooping | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| DHCP features | DHCP server |
| SSH/SSL support | Y |
Management features
| Management protocols | SNMPv3 |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| MIB support | Y |
| Switch layer | L2/L3 |
| ARP inspection | Y |
Downloads
119676_document_DE_001
PDF Download
ID: 119676
Cisco ID: WS-C2960X-24PS-L
Catalyst 2960-X Gigabit Ethernet Switch, 24ports + 4x1G xSFP
Detailed product title
Detailed product title

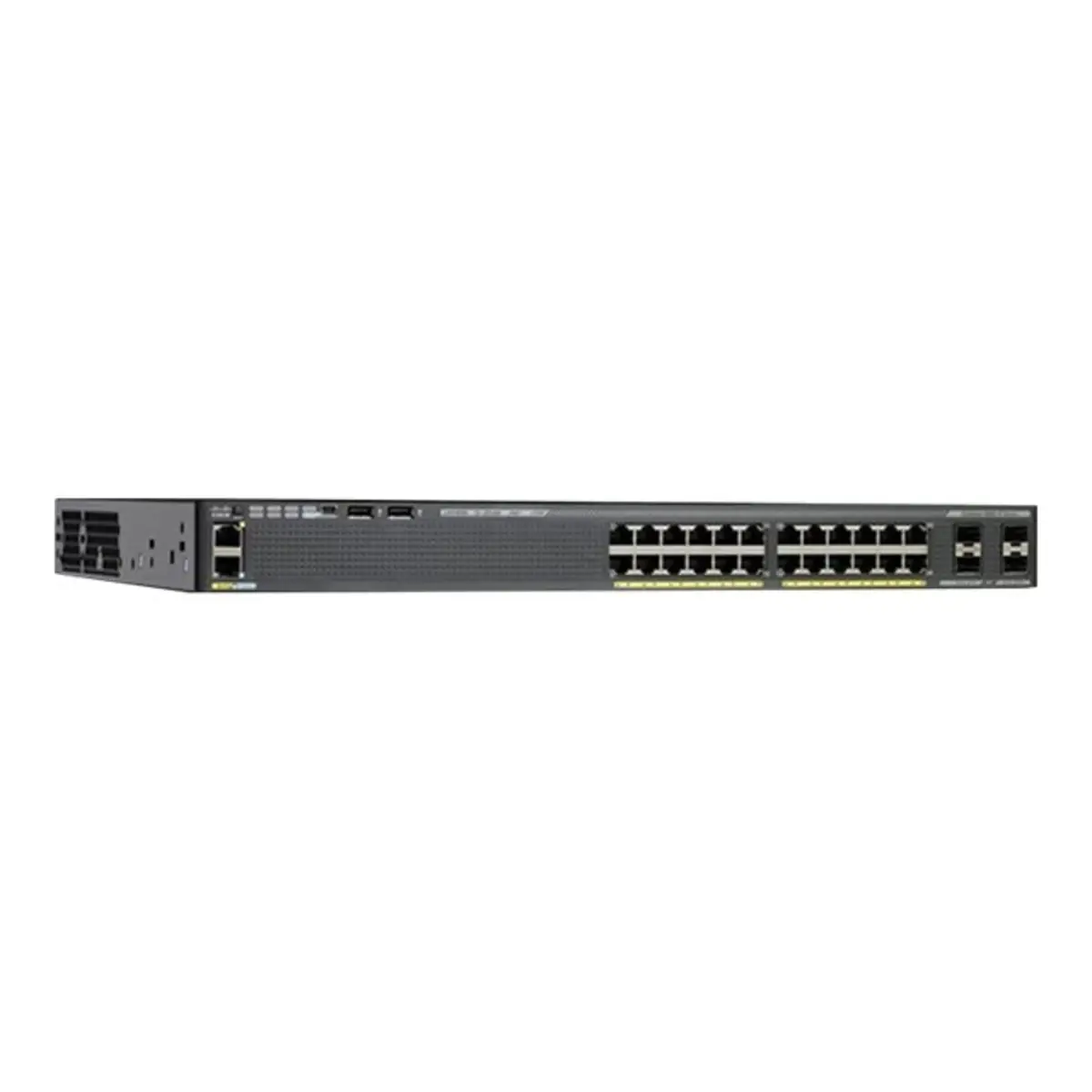

Cisco Catalyst 2960-X Gigabit Ethernet Switch, 24ports + 4x1G xSFP
