3 Images
Product description

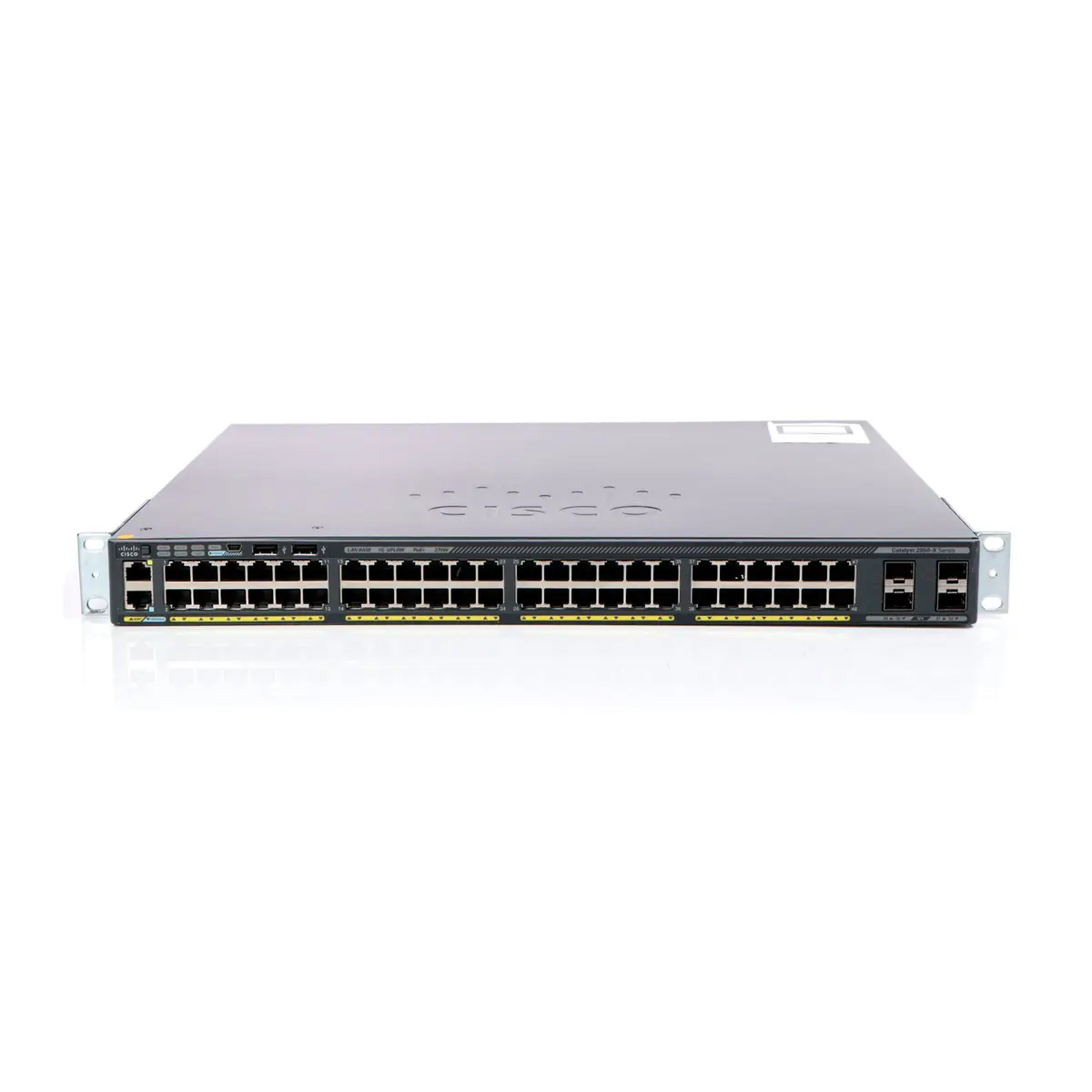

The Cisco Catalyst 2960X-48LPS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
Technical specifications
Design
| Stackable | Y |
Logistics data
| Harmonized System (HS) code | 85176990 |
Leistungen
| Memory type | DRAM |
| Mean time between failures (MTBF) | 276,870 std |
| Physical stacking (units) | 8 |
Protokolle
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
Systemanforderung
| Processor frequency | 600 MHz |
Power
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
Lieferumfang
| Cables included | AC |
Data transmission
| Number of static routes | 1,000 |
| Number of queues | 8 |
| Throughput | 107.1 Mpps |
Verpackungsdaten
| User guide | Y |
Certificates
| Safety | UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1, |
Power supply
| Power consumption (typical) | 60.9 W |
Sonstige Funktionen
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,I |
| Rack mounting | Y |
| Power LED | Y |
| Input current | 5 |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 39 dB |
| Switching capacity | 216 Gbit/s |
Operational conditions
| Operating relative humidity (H-H) | 10 - 95 |
| Storage temperature (T-T) | -25 - 70 |
| Operating temperature (T-T) | -5 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 10 - 95 |
| Non-operating altitude | 0 - 4000 |
Gewicht und Abmessungen
| Weight | 5,800 g |
| Height | 45 mm |
| Width | 445 mm |
| Depth | 368 mm |
Ergonomics
| LED indicators | Y |
Computer system
| Built-in processor | Y |
Network
| Full duplex | Y |
| MAC address table | 16,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Number of VLANs | 1,023 |
| Jumbo frames | 9,216 |
| Rate limiting | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| 10G support | Y |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |

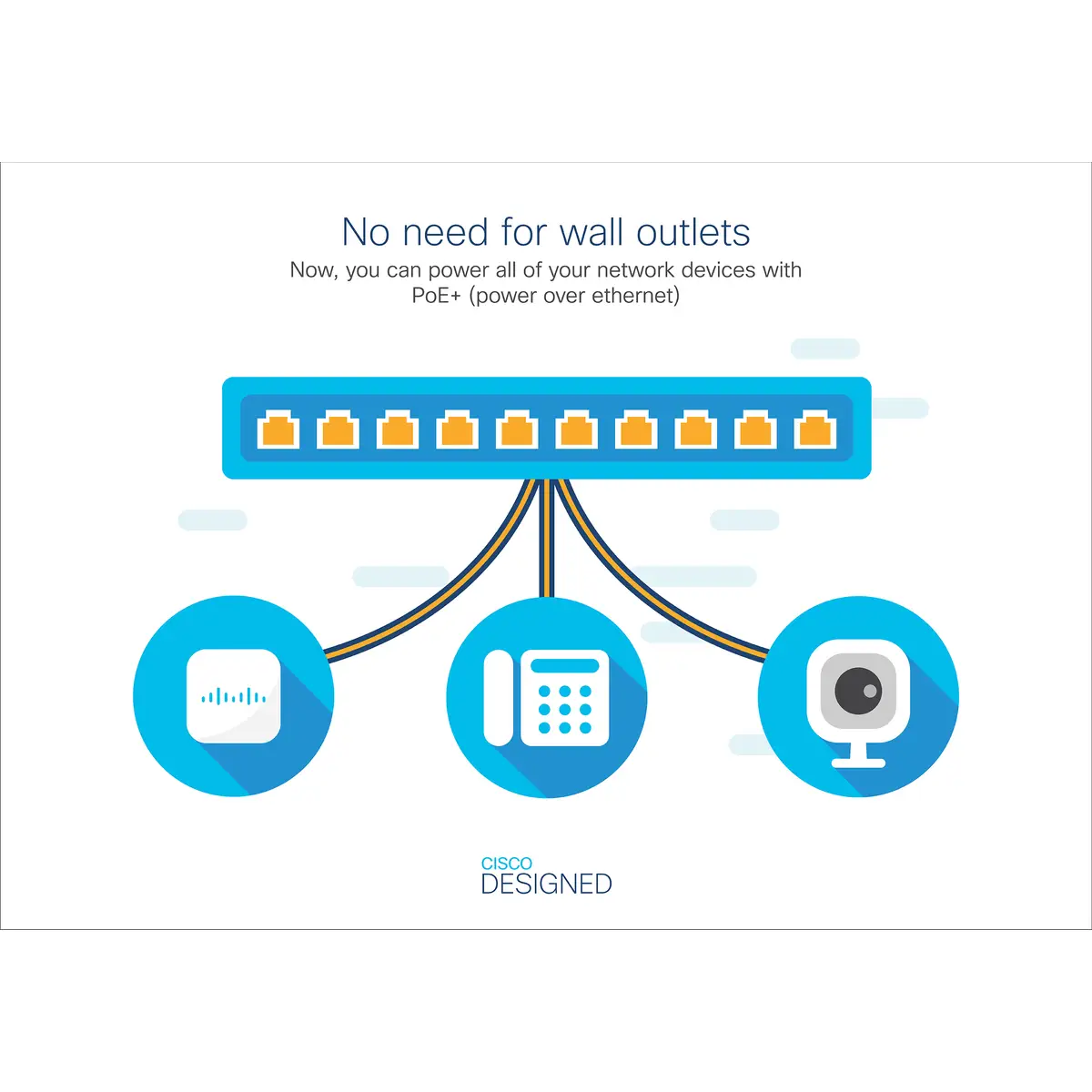

Power over Ethernet (PoE)
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
Multicast features
| Multicast support | Y |
| Number of multicast groups filtered | 1,000 |
Security
| Security algorithms | 802.1x RADIUS,SNMP,SSH |
| Access Control List (ACL) | Y |
| Access Control List (ACL) rules | 3 |
| IGMP snooping | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| DHCP features | DHCP server |
| SSH/SSL support | Y |
Management features
| Management protocols | SNMPv3 |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| MIB support | Y |
| Switch layer | L2/L3 |
| ARP inspection | Y |
ID: 119670
Cisco ID: WS-C2960X-48LPS-L
Catalyst 2960-X Switch LAN Base 48x10/100/1000 + 4xSFP, Managed
Detailed product title
Detailed product title
Cisco Small Business Catalyst 2960X-48LPS-L Network Switch, 48 Gigabit Ethernet Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-48LPS-L). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
