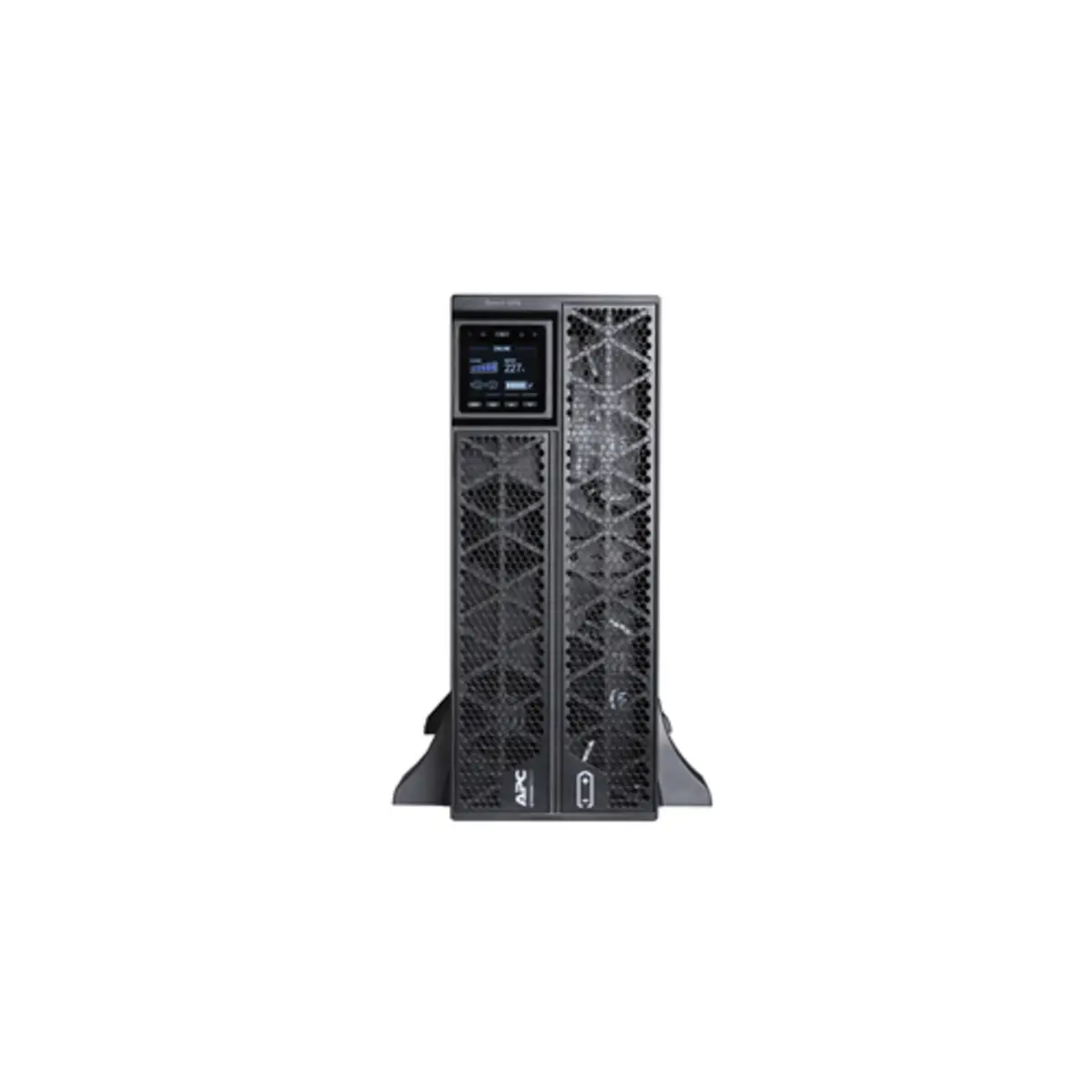

- SRTG5KXLI, Doppelwandler (Online), 5 kVA, 5000 W, Sine, 100 V, 285 V
1 Images
Product description
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is out.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
SmartSlot
Customize UPS capabilities with management cards.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
LED status indicators
Quickly understand unit and power status with visual indicators.
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is out.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
SmartSlot
Customize UPS capabilities with management cards.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
LED status indicators
Quickly understand unit and power status with visual indicators.
Technical specifications
Design
| Product colour | Black |
| Form factor | Compact |
| LED indicators | Y |
| Rack capacity | 4U |
Anschlüsse und Schnittstellen
| Ethernet LAN ports | 1 |
| AC outlet types | C13 coupler,C19 coupler |
| Emergency Power Off (EPO) connector | Y |
| Serial interface | Y |
| SmartSlot | Y |
| AC outlets quantity | 3 AC out |
Maus
| Certification | CE, EN/IEC 62040-1 |
Leistungen
| ECO mode | Y |
Merkmale
| Audible alarm(s) | Y |
| Crest factor | 3:1 |
| UPS topology | Double-conversion (Online) |
| Audible alarm modes | Alarm when on battery,Lowbattery alarm,Overload a |
| Emergency Power Off (EPO) | Y |
| Surge energy rating | 600 J |
| Output power capacity | 5 kVA |
| Output voltage Total Harmonic Distortion (THD) | 2 % |
| Input operation voltage (max) | 285 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Batterie
| Hot-swap battery | Y |
| Battery voltage | 96 V |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Battery life (max) | 5 |
Stromversorgung
| Battery technology | Sealed Lead Acid (VRLA) |
Verpackungsdaten
| Package weight | 59,000 g |
| Package depth | 790 mm |
| Package width | 590 mm |
| Package height | 275 mm |
Leistung
| Battery recharge time | 4 std |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 2011 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15240 |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 5,000 W |
| Noise level | 55 dB |
Gewicht und Abmessungen
| Weight | 51,900 g |
| Height | 178 mm |
| Width | 440 mm |
| Depth | 620 mm |
Downloads
313139_document_EN_001
PDF Download
ID: 313139
APC ID: SRTG5KXLI
SRTG5KXLI, Doppelwandler (Online), 5 kVA, 5000 W, Sine, 100 V, 285 V
Detailed product title
Detailed product title
APC SRTG5KXLI. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 5 kVA, Ausgangsleistung: 5000 W. AC-Steckertypen: C13-Koppl er, C19-Koppler, Anzahl der AC-Ausgänge: 3 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA), Akku-/Batteriespann ng: 96 V, Batterielebensdauer (max.): 5 Jahr(e). Formfaktor: Kompakt, Produktfarbe: Schwarz, Rack-Kapazität: 4U. Breite: 440 mm, Ti fe: 620 mm, Höhe: 178 mm
