- 2 Port KVM Switch USB HDMI Schwarz
+3 Images
8 Images
Product description
Share a keyboard, mouse and HDMI monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
Technical specifications
Bildschirm
On Screen Display (OSD) | N |
Anschlüsse und Schnittstellen
Number of microphone inputs | 3 |
Video port type | HDMI |
Keyboard port type | USB |
Mouse port type | USB |
Console ports | 3.5mm headphone,3.5mm mic,HDMI,USB A |
Number of computers controlled | 2 |
Console USB ports quantity | 4 |
Video
HD type | Full HD |
Maus
Certification | R0HS |
Leistungen
Daisy chain | N |
Mean time between failures (MTBF) | 126,813 std |
Stromversorgung
Energy consumption | 18 W |
Technische Details
Ports quantity | 2 |
AC input voltage | 100 - 240 |
Verpackungsdaten
AC adapter | Y |
Package weight | 1,100 g |
Package depth | 250 mm |
Package width | 188 mm |
Package height | 100 mm |
Rubber feet | Y |
Leistung
DC input voltage | 12 |
Output current | 1.5 A |
Betriebsbedingungen
Operating relative humidity (H-H) | 0 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 40 |
Sonstige Funktionen
Power requirements | AC 110 - 240 V |
Power plug type | Type M |

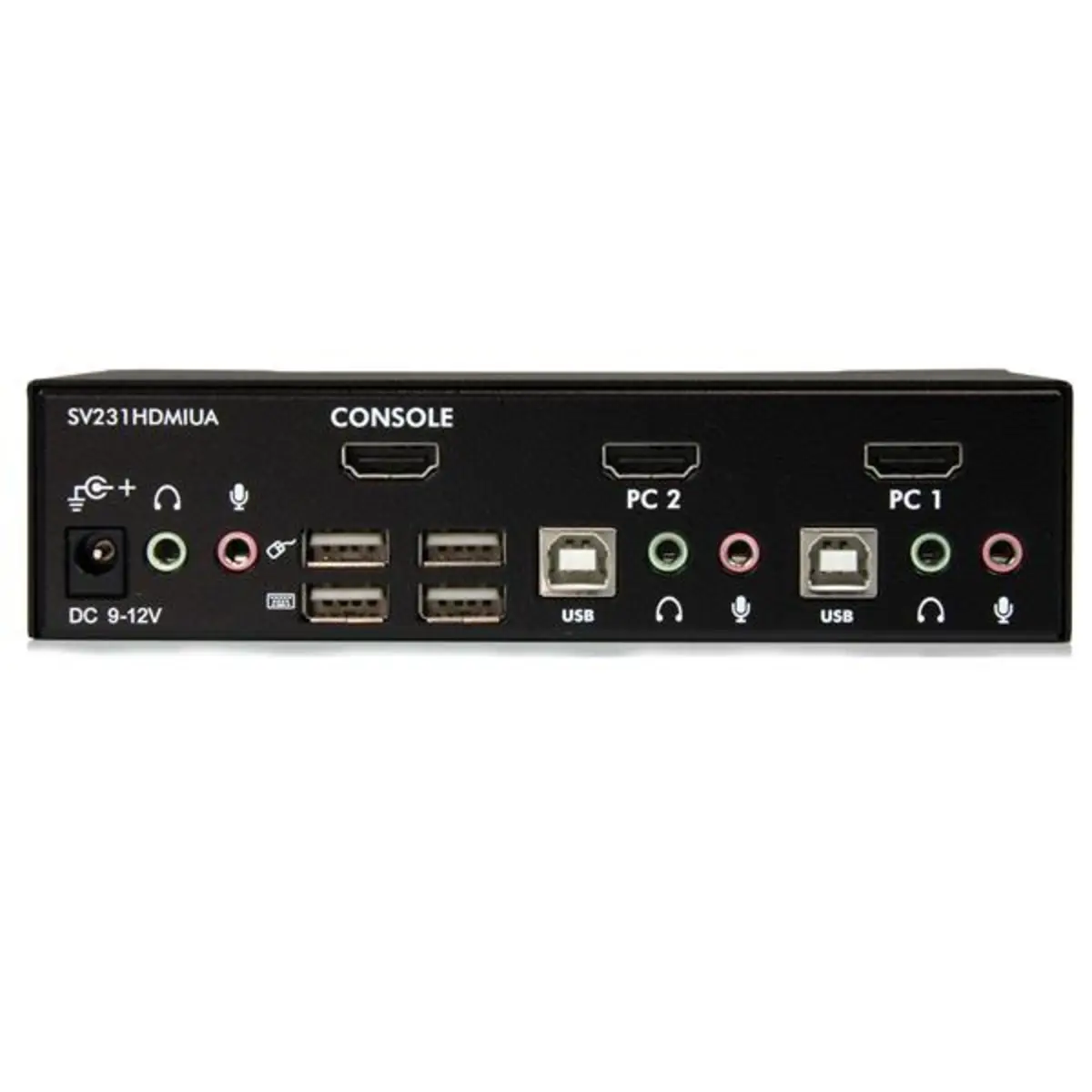

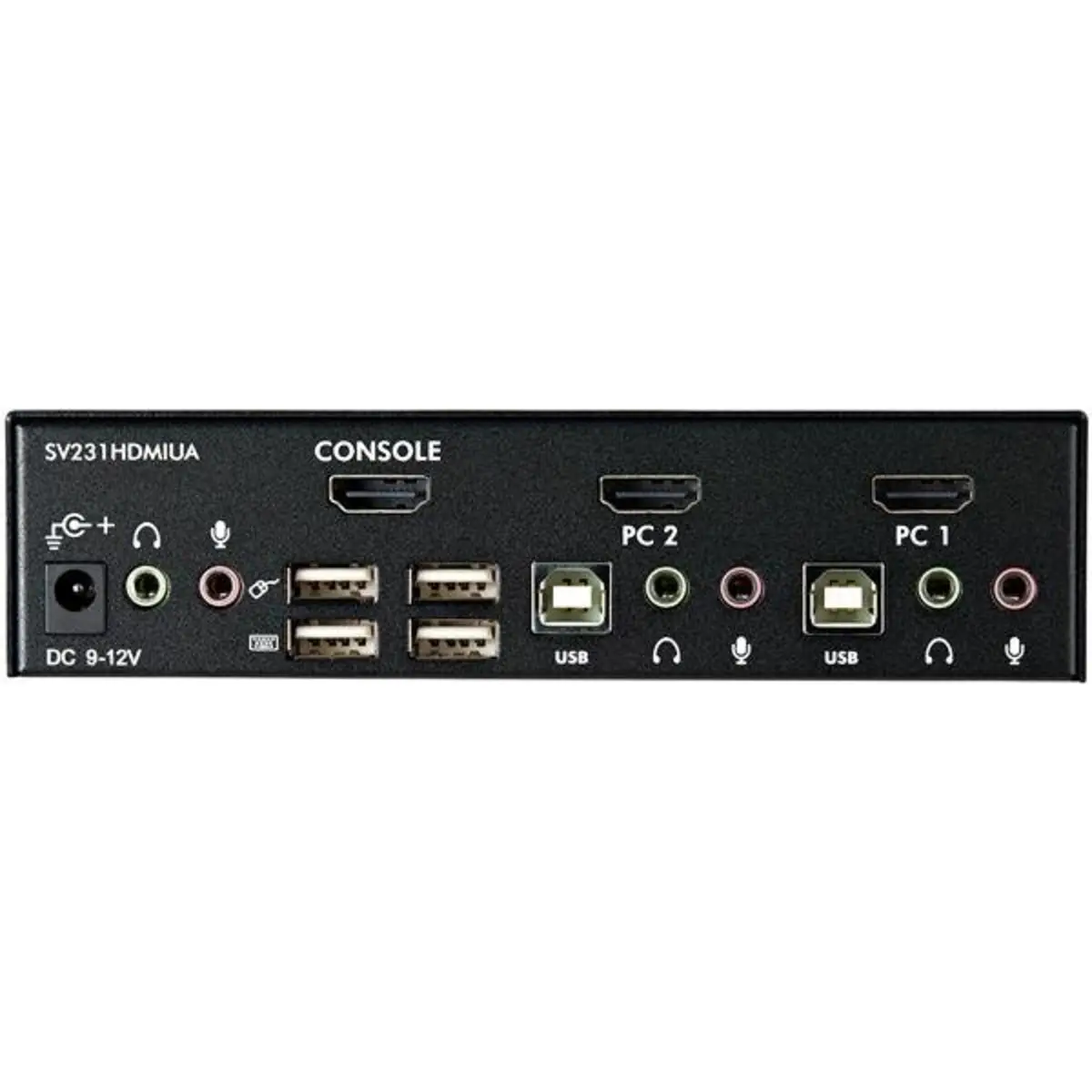

I/O ports | 1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) |
Headphone outputs | 3 |
Manual | Y |
Rack mounting | N |
Dimensions (WxDxH) | 124.8 x 70 x 40 |
Maximum resolution | 1920 x 1200 |
Input current | 0.8 |
Gewicht und Abmessungen
Weight | 634 g |
Height | 40 mm |
Width | 125 mm |
Depth | 70 mm |
Logistische Daten
Harmonized System (HS) code | 85176200 |
