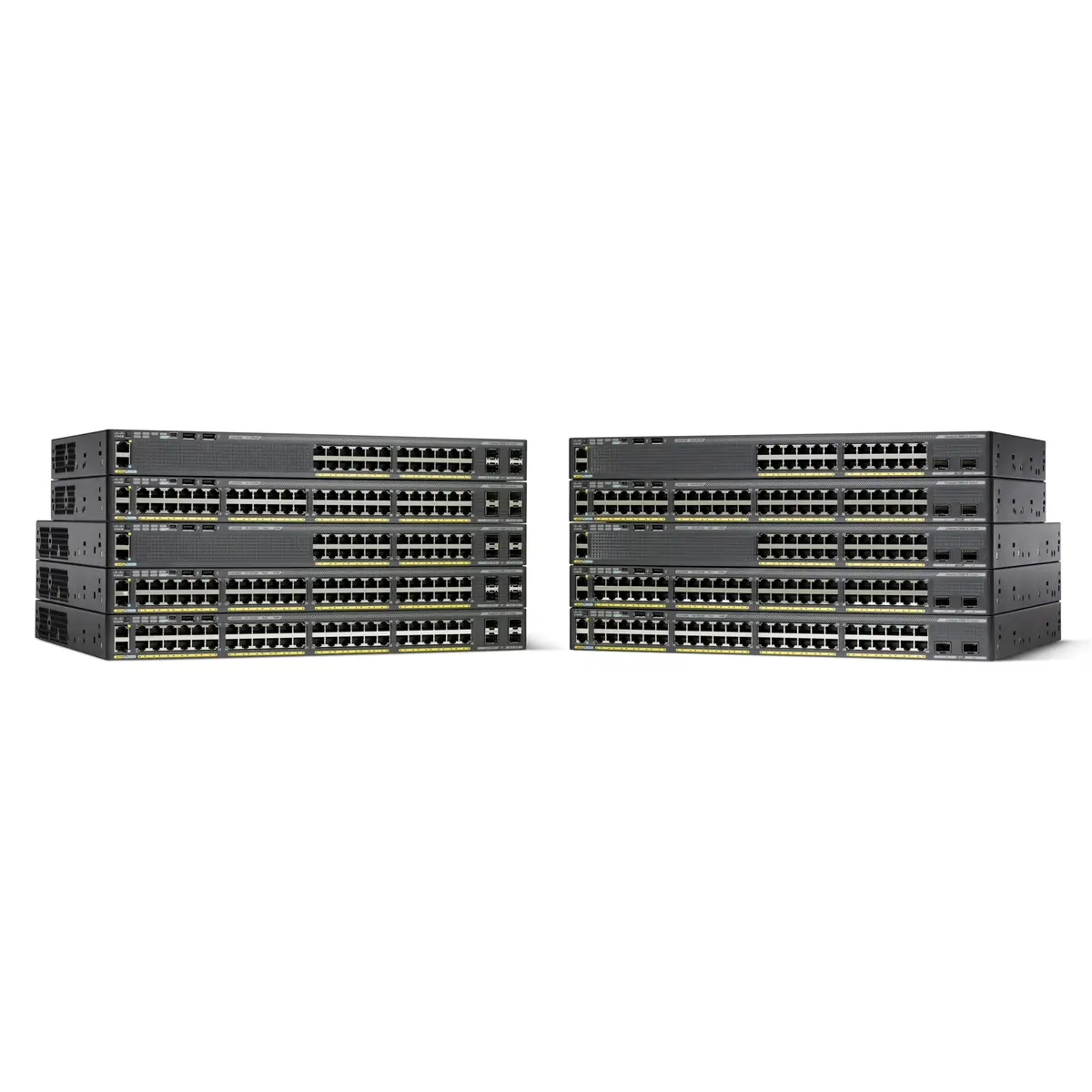

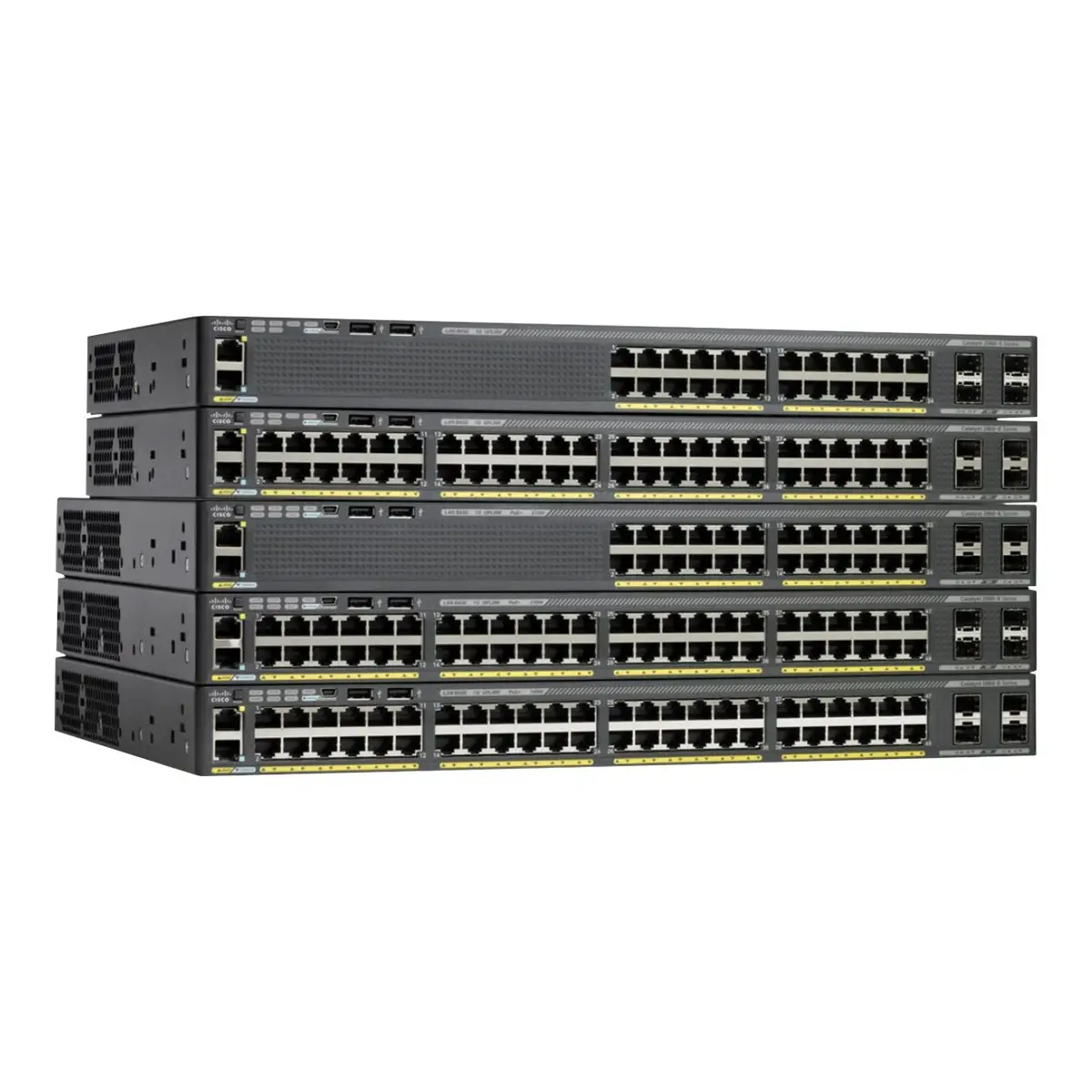

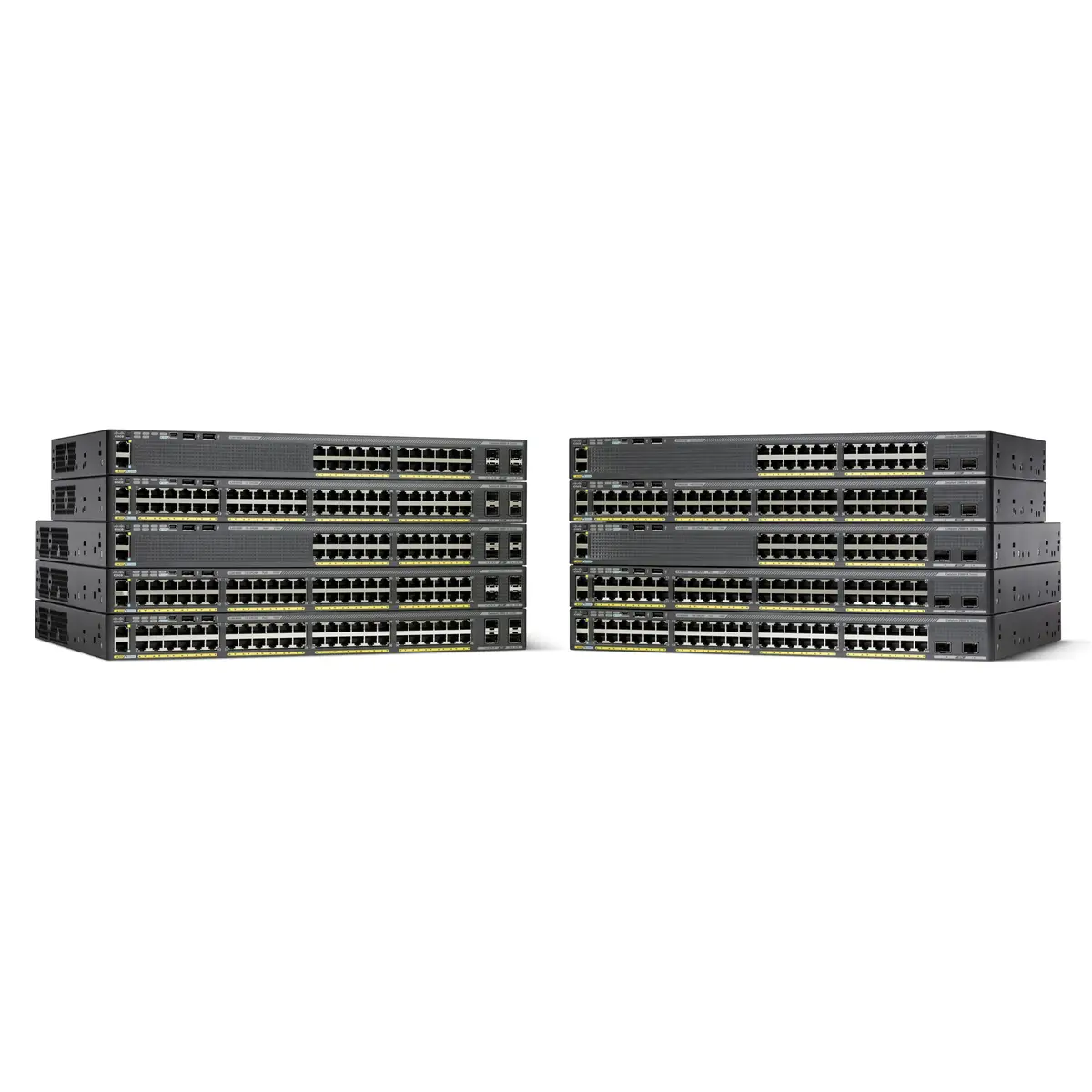

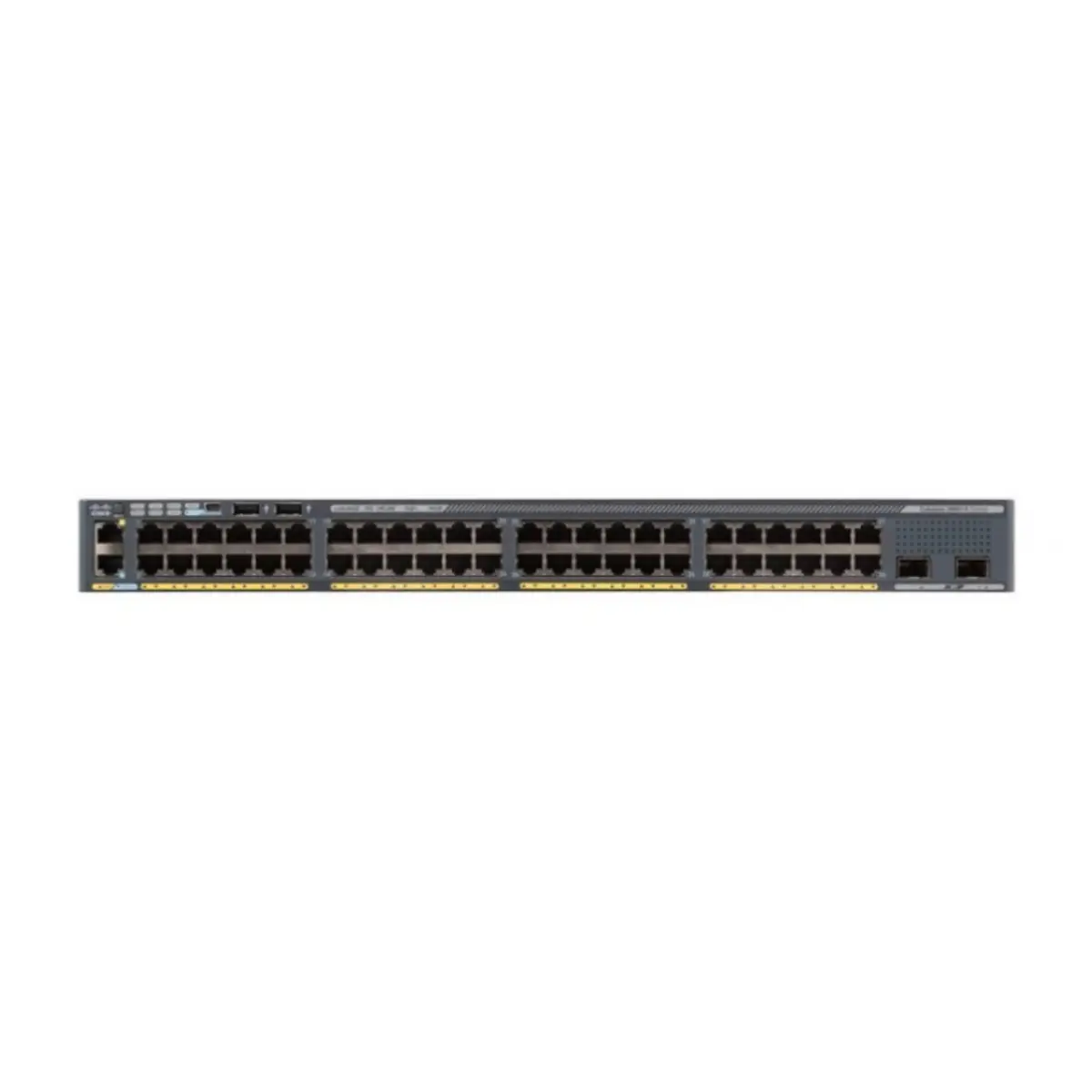

Catalyst 2960X-48LPD-L Gigabit Ethernet Switch 48ports + 2xSFP+ PoE+

Product description

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.

Technical specifications

Logistics data

Harmonized System (HS) code

85176990

Leistungen

Memory type	DRAM
Mean time between failures (MTBF)	277,960 std

Design

Stackable

Systemanforderung

Processor frequency

600 MHz

Thin Client

Internal memory

512 MB

Power

Number of power supply units	1
Redundant power supply (RPS) support	Y
Power consumption (typical)	61.2 W
AC input voltage	100 - 240
AC input frequency	50 - 60

Data transmission

Throughput

130.9 Mpps

Certificates

Safety

UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1,

Sonstige Funktionen

Networking standards	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,I
Rack mounting	Y
Power LED	Y
Flash memory	128 MB
Noise level	39 dB
Switching capacity	216 Gbit/s

Operational conditions

Operating relative humidity (H-H)	10 - 95
Storage temperature (T-T)	-25 - 70
Operating temperature (T-T)	-5 - 40
Operating altitude	0 - 3000
Storage relative humidity (H-H)	10 - 95
Non-operating altitude	0 - 4000

Ergonomics

LED indicators

Computer system

Built-in processor

Network

Full duplex	Y
MAC address table	16,000 entrie
Jumbo frames support	Y
Auto MDI/MDI-X	Y
Link aggregation	Y
VLAN support	Y
Number of VLANs	1,023
Rate limiting	Y
Broadcast storm control	Y
Spanning tree protocol	Y
10G support	Y

Ports & interfaces

USB 2.0 ports quantity	2
Console port	RJ-45
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48

Weight & dimensions

Weight	5,800 g
Height	45 mm
Width	445 mm
Depth	368 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Multicast features

Multicast support

Security

Access Control List (ACL)	Y
IGMP snooping	Y
DHCP features	DHCP server
SSH/SSL support	Y

Management features

Web-based management	Y
Quality of Service (QoS) support	Y
Switch layer	L2

Downloads

119671_document_DE_001

PDF Download

Reviews

ID: 119671 Cisco ID: WS-C2960X-48LPD-L

Catalyst 2960X-48LPD-L Gigabit Ethernet Switch 48ports + 2xSFP+ PoE+

Detailed product title

Cisco Catalyst 2960X-48LPD-L Gigabit Ethernet Switch 48ports + 2xSFP+ PoE+

Basic switching RJ-45 Ethernet ports quantity 48
