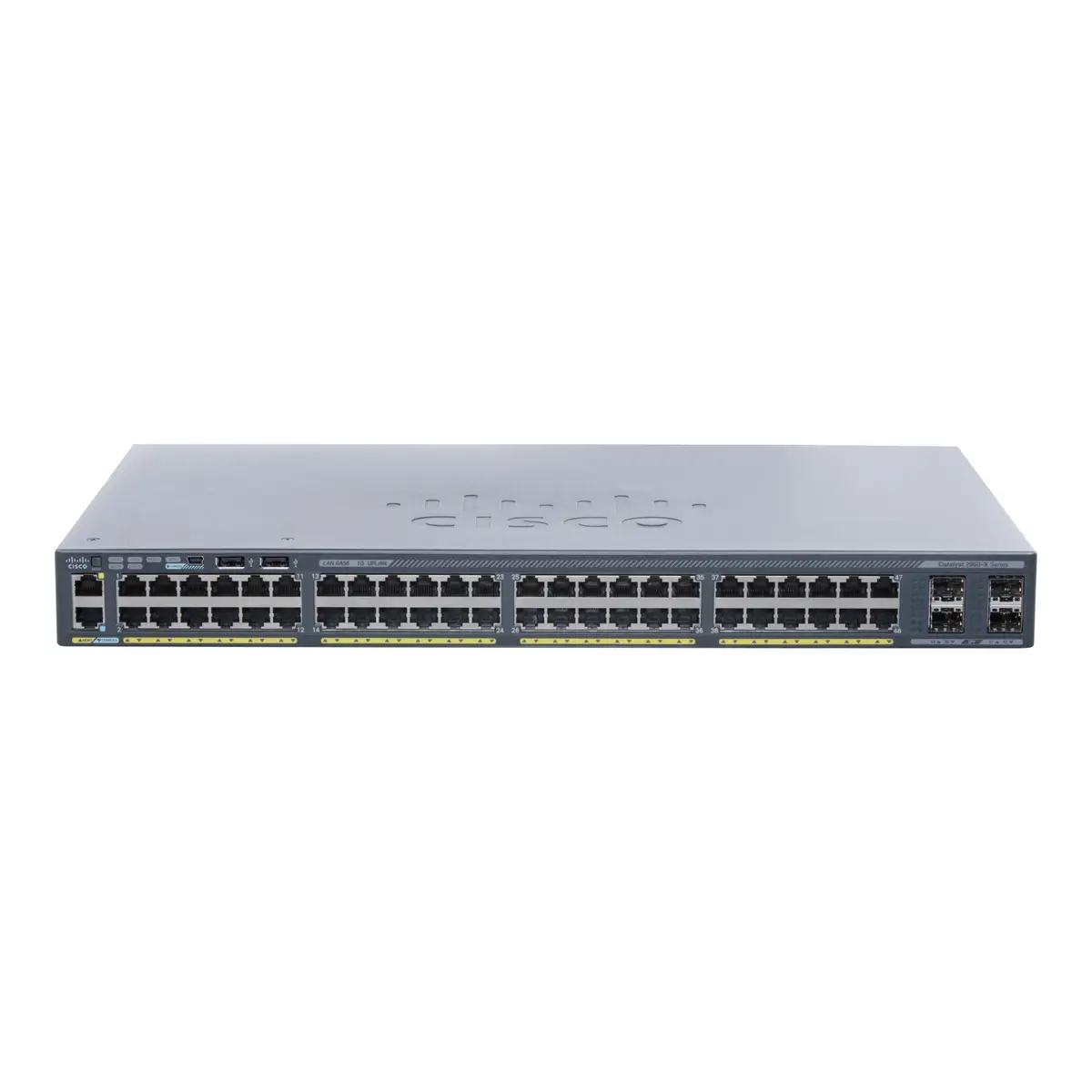

Switch/Cat 2960-X 48 Gigabit Ethernet Switch 48ports + 4x Gigabit SFP

Product description

Cisco offers a comprehensive portfolio of switching solutions for enterprise networks, data centers and small businesses. Our solutions are optimized for a wide range of industries such as service providers, financial services or the public sector.

More safety
Gain comprehensive visibility and ability to contain threats by using your network as a sensor and control tool.
Accelerated Services
Optimize application performance with greater network intelligence.
Simplified operation
Increase network flexibility through automation and programmability.

Technical specifications

Logistics data

Harmonized System (HS) code

85176990

Leistungen

Memory type	DRAM
Mean time between failures (MTBF)	442,690 std

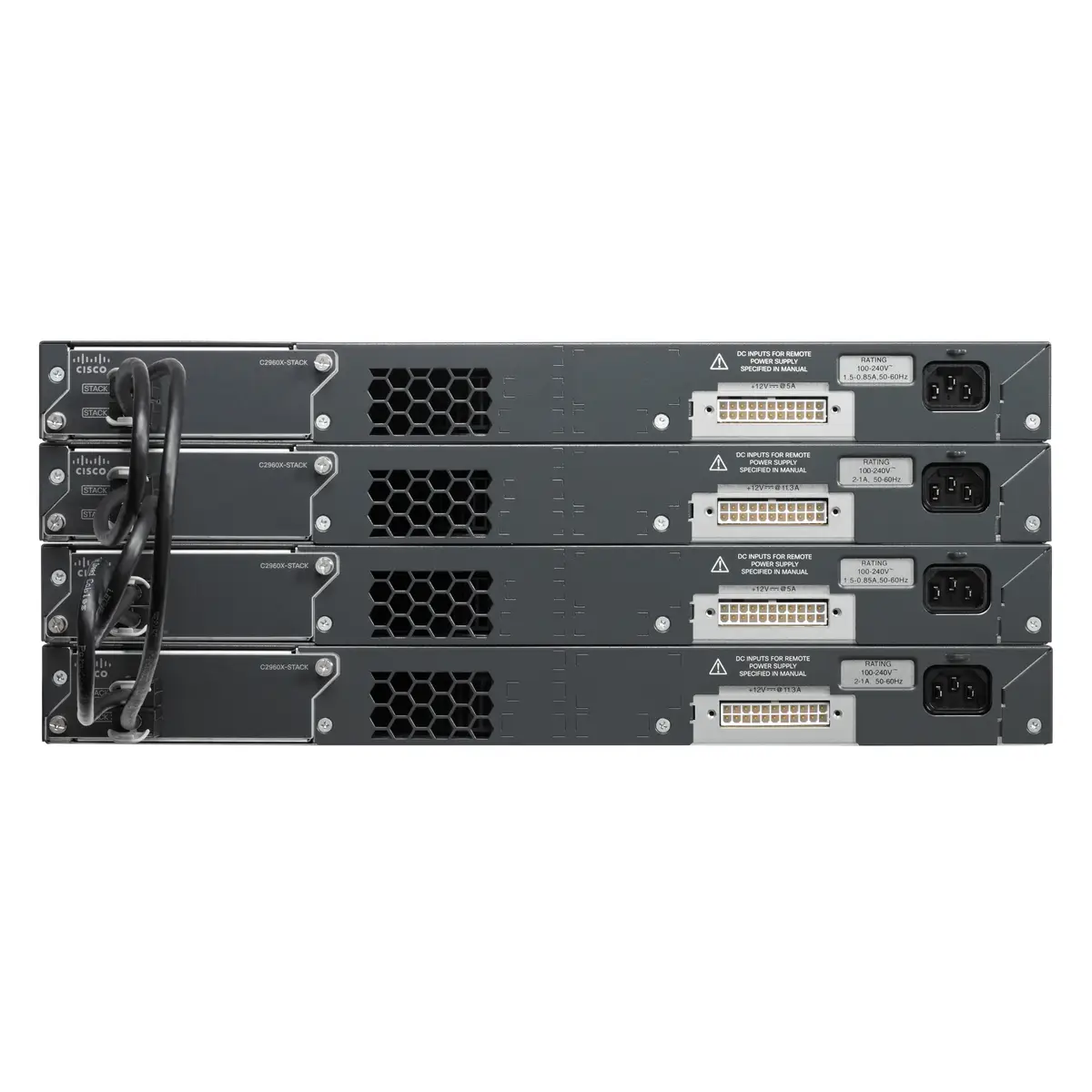

Physical stacking (units)	8

Protokolle

Switching protocols

UDP, TCP, RADIUS/TACACS+

Design

Stackable

Systemanforderung

Processor frequency

600 MHz

Thin Client

Internal memory

512 MB

Power

Number of power supply units	1
Redundant power supply (RPS) support	Y
Power consumption (typical)	49.5 W
AC input voltage	100 - 240
AC input frequency	50 - 60

Lieferumfang

Cables included

Data transmission

Number of static routes	1,000
Number of queues	8
Throughput	107.1 Mpps

Verpackungsdaten

User guide

Certificates

Safety

UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1,

Power supply

Power supply included

Sonstige Funktionen

Networking standards	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,I
Rack mounting	Y
Power LED	Y
Flash memory	128 MB
Noise level	42 dB
Switching capacity	216 Gbit/s

Operational conditions

Operating relative humidity (H-H)	10 - 95
Storage temperature (T-T)	-25 - 70
Operating temperature (T-T)	-5 - 40
Operating altitude	0 - 3000
Storage relative humidity (H-H)	10 - 95
Non-operating altitude	0 - 4000

Ergonomics

LED indicators

Computer system

Built-in processor

Network

Full duplex	Y
MAC address table	16,000 entrie
Jumbo frames support	Y
Auto MDI/MDI-X	Y
Link aggregation	Y
VLAN support	Y
Number of VLANs	1,023
Jumbo frames	9,216
Auto-negotiation	Y
Rate limiting	Y
Broadcast storm control	Y
Spanning tree protocol	Y
10G support	Y

Ports & interfaces

USB 2.0 ports quantity	2
Console port	RJ-45
Gigabit Ethernet (copper) ports quantity	48
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48

Weight & dimensions

Weight	4,200 g
Height	45 mm
Width	445 mm
Depth	279 mm

Multicast features

Multicast support	Y
Number of multicast groups filtered	1,000

Security

Security algorithms	802.1x RADIUS,SNMP,SSH
Access Control List (ACL)	Y
Access Control List (ACL) rules	3
IGMP snooping	Y
Authentication	MAC-based authentication,Port-based authentication
DHCP features	DHCP server
SSH/SSL support	Y

Management features

Management protocols	SNMPv3
Web-based management	Y
Quality of Service (QoS) support	Y
MIB support	Y
Switch layer	L2
ARP inspection	Y

Downloads

119668_document_DE_001

PDF Download

Reviews

ID: 119668 Cisco ID: WS-C2960X-48TS-L

Switch/Cat 2960-X 48 Gigabit Ethernet Switch 48ports + 4x Gigabit SFP

Detailed product title

Cisco Switch/Cat 2960-X 48 Gigabit Ethernet Switch 48ports + 4x Gigabit SFP

Basic switching RJ-45 Ethernet ports quantity 48
